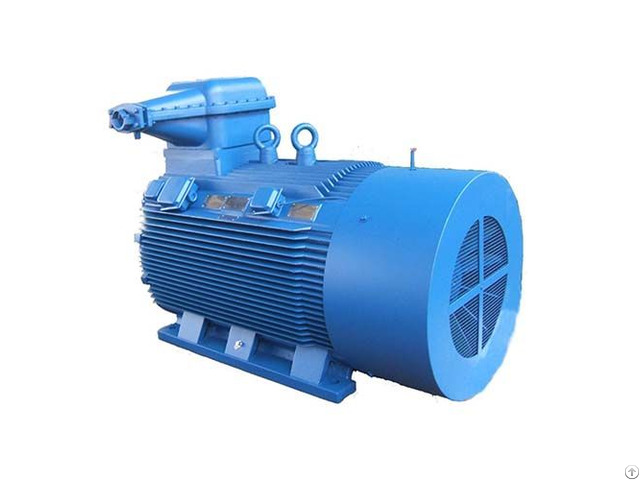

High Efficiency Asynchronous Explosion-Proof Motor

Product Description

YB2 explosion-proof asynchronous AC motor is a kind of motor that can be used in flammable and explosive places, and does not generate electric spark during operation.

It is a motor structure that does not generate arcs, sparks or dangerous high temperatures under normal operating conditions, and then takes some mechanical, electrical and thermal protection measures to further avoid arcing, sparking or under normal or approved overload conditions.

The danger of high temperatures ensures the safety of explosion protection.

Product Parameters

Motor power range is 0.55-315KW

Rated voltage: 380V, 660V, 1140V, 380/660V, 660/140V.

Rated frequency: 50Hz/60Hz.

Quota: continuous work S1

Explosion-proof signs: ExdI, ExdII AT4, Exd IIBT4, ExdIICT4.

Environmental conditions: The altitude does not exceed 1000m, and the ambient air temperature varies with the season, which is -15~40°C.

Shell protection rating: IP55.

Motor insulation class is F

Cooling method: IC411.

Installation type: B3, B5, B35, V1, etc.

Customized Explosion-Proof Electric Motor: ZCL Electric Motor Technology Co., Ltd.

Feature of Product

YB2 series asynchronous explosion-proof motor, which has the characteristics of high efficiency, energy saving, large starting torque, good performance, low noise, low vibration, high reliability and convenient use and maintenance.

(1) The correspondence between power class, installation size and speed is consistent with DIN42673 - Considering the compatibility with the YB series and the interchangeability of the Y2 series, the necessary adjustments are made, which is more effective and applicable.

(2) The whole series adopts Class F insulation, and the temperature rise is assessed according to Class B.

(3) The noise limit is lower than that of the YB series, which is close to the Y-class noise of the YB series, and the vibration limit is equivalent to the YB series.

(4) The enclosure protection level is increased to IP55.

(5) The whole series uses low-noise deep groove ball bearings, and the center of the machine base is higher than 180mm.

(6) There are two types of motor heat sinks: parallel horizontal distribution and radiation distribution, which are mainly parallel horizontal distribution.

ZCL Electric Motor Technology Co., Ltd. is a modern import and export company that manages electrical equipment, mechanical equipment, automation control equipment technology research, technical consultation, etc.

With a registered capital of RMB 3 million, the company is located in Hebei, China with abundant products and convenient transportation.

Shijiazhuang City, the provincial capital of the province, is based on the dominant position in the steel, chemical, building materials and machinery processing industries in North China.
