high level RP Graphite Electrode

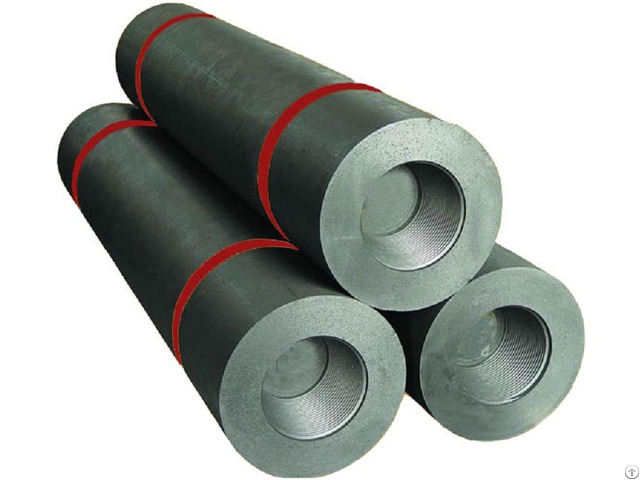

RP graphite electrodes Low Consumption Rates RP Graphite Electorde

DESCRIPTION

Designed primarily for use in electric arc furnaces, our RP graphite electrodes are made of premium Petroleum Coke, Needle Coke and Coal pitch in a process that includes strict grading, mixing, molding, double baking, high pressure impregnating and fine-matching.

Model Number: SY-RP200

Application: EAF/LF

Grade: RP(Regular power)

Length: 1600/1800/2000/ 2400/2700/3000mm

Resistance((μΩ.

m): 8.5

Bulk Density(g/cm³ ): 1.53

Flexure Strength (≥, MPa): 8.5

Elastic Modulus (≤, GPa): 9.3

Ash Content (≤, %): 0.5

CTE(≤, 10-6/°C): 2.9

Material: Petroleum Coke/Coal Pitch

Color: Black/Grey

EAF graphite electrode FEATURE

Outstanding electrical conductivity Low consumption rates

Anti-oxidation

Highly flexible strength and Bending Strength

APPLICATION

Graphite electrode are used primarily in electric arc furnace steel manufacturing.

It can provide high levels of electrical conductivity and capability of sustaining the extremely high levels of generated heat, and also used in the refinement of steel and similar smelting processes.

DC electric arc furnace

AC electric arc furnace

Ladle furnace

SPECIFICATION

Specs Unit Graphite electrode specifications RP HP UHP Φ300-800mm Φ300-800mm Φ300-500mm Φ550-800mm Typical Value Typical Value Typical Value Typical Value

Resistivity Electrode μΩm 7.0-10.0 5.8-6.6 4.5-5.8 4.6-5.8 Nipple 4.0-4.5 3.5-4.0 3.5-4.0 3.5-4.0

Flexure Strength Electrode Mpa 8.0-10.0 10.0-13.0 10.0-14.0 10.0-14.0 Nipple 19.0-22.0 20.0-23.0 20.0-24.0 22.0-26.0

Elastic Modulus Electrode Gpa 7.0-9.3 8.0-12.0 9.0-13.0 10.0-14.0 Nipple 12.0-14.0 14.0-16.0 15.0-18.0 16.0-19.0

Bulk Density Electrode g/cm3 1.53-1.56 1.64-1.68 1.68-1.74 1.7-1.74 Nipple 1.70-1.74 1.75-1.80 1.78-1.82 1.80-1.84

CTE(100-600℃) Electrode 10-6/℃ 2.2-2.6 1.6-1.9 1.1-1.4 1.1-1.4 Nipple 2.0-2.5 1.1-1.4 0.9-1.2 0.9-1.2

Ash % 0.5 0.3 0.3 0.3 RP graphite electrode Manufacturer has advanced production equipment, complete facilities, advanced testing methods and professional team.

Always put quality in the first place, from material selection to final machining, each process is strictly and quality-tested and controlled, and carefully create high-quality graphite products for customers.
