High P Q Characteristic Oil Burner Suitable For Small Boilers - China

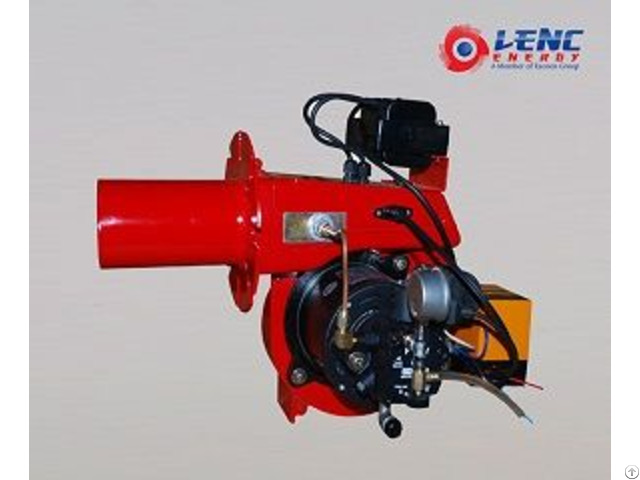

High P-Q characteristic oil burner Suitable for small boilers

Description and Application

Characteristic:

1 - Beautiful appearance, reliable structure.

2 - High P-Q characteristic, strong adaptability.

3 - Directly ignition mode.

4 - Easy to inspect and maintain.

5 - Safety flame monitoring system.

6 - Stable performance, reliable operaton.

Application

Suitable for small boilers, drying and heating equipment, stoves and cooking cabinets for the catering industry.

Technical Specification

Model OM-ONH OM-ON OM-1N(WM) OM-2N(WM) OM-3N(WM) OM-4N(WM)

Output Power 104 kcal/h 3-7 3-5 5-10 10-20 15-30 20-40 kw/h 35-80 35-80 58-116 116-233 174-349 233-465 Motor Power kw 0.1 0.15 0.25 0.4

Power requirement main power AC 220v/50Hz/unidirectional AC 380v/50HZ/3Φ Control power supply AC 220v/50HZ/1Φ

control mode Fully automatic single-stage (double-stage)

Fuel requirements Light diesel oil (International 0# Diesel)

Atomization pressure Dynamic pressure 1.0- 1.2MPa (10 - 1 2kgf /cm2)

Model structure Gun type

Flame monitoring method Photoresistor monitoring

Damper adjustment method Manual adjustment (automatic adjustment of the damper motor)

Install flange form Fixed flange form
