High Quality Co2 Laser Tube - China

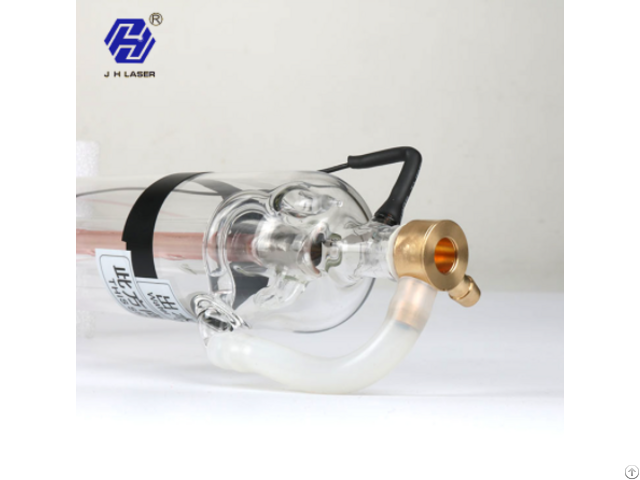

CO2 Laser Tube

Jinghang laser tube are superior in quality because the products have been passed 18 process rigorous testing procedures prior to shipment.

With special patents and catalytic technology, our laser tube have longer life, stable output power, good beam mode and fast cutting speed.

When cutting white fabric, it can not get yellow.

H Series CO2 Laser Tube is the traditional series of Shijiazhuang jinghang laser technology co., ltd. The gas of H-series tubes are filled with gas produced by domestic manufacturers.

H series are obtained well reputation from the customers for its high cost performance.

After the technological upgrading and innovation, the warranty of H series is extended.

H SERIES: Main Paramete

Model H600 H700 H800 H1050 H1260 H1280 H1480 H1660 H1680 H1880 H2080 Length 600mm 700mm 800mm 1000mm 1250mm 1250mm 1450mm 1650mm 1650mm 1850mm 2050mm

Diameter 50±1mm 50±1mm 50±1mm 60±1mm 60±1mm 80±1mm 80±1mm 60±1mm 80±1mm 80±1mm 80±1mm

Wavelength 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um

Catalyst No No No Yes Yes Yes Yes Yes Yes Yes Yes

Output Power 30W 40W 45W 50W 60W 80W 100W 80W 130W 150W 180W

Max Output Power 40W 50W 50W 80W 90W 100W 120W 130W 150W 180W 200W

Triggering Voltage 18-23KV 26-28KV 26-29KV

Working Voltage 18-21KV 20-23KV 20-25KV

Triggering Current 2-3mA

Max Working Current 15mA 15mA 15mA 20mA 20mA 28mA 28mA 30mA 30mA 30mA 30mA

Type Of Cooling Water-cooling 15-25℃ Instability(%) ≤1%

Spot diameter 3±1mm 3±1mm 3±1mm 4±1mm 4±1mm 4±1mm 5±1mm 7±1mm 7±1mm 7±1mm 7±1mm

Warranty 6Months 10 months Note: We can customize products according to your requirements Product Application:

Jinghang laser tubes have widely applications:

1 Application Machines: CO2 Laser engraving machine, laser cutting, laser marking, 2 Application materials: cutting acrylic, glass, cloth, leather, cloth, stone, wood, color board etc

3 Application Industry: Advertising decoration, gifts, paper products, bamboo products, lighting, packaging, plate-making, display cutting etc Features and Advantages:

1 - Long Life and Stable Power Jinghang CO2 laser tube have a serious of special patents, the discharge tube coated with catalytic technology, the life has increased; matched with the electrode treated by special process, ensure the discharge more stable.

Such as the Jinghang CO2 laser tube 150 w, it’s max output power can reach about 180 w.

Other company’s CO2 laser tube merely can beyond us.

2 - Fast Cutting Speed Jinghang laser tubes have improved the quality all the time, Jinghang CO2 laser tube’s cutting speed is apparently faster than others in the same power

3 - Good Beam Mode

Jinghang Laser beam mode is good, using own patented technology to modify the beam size and quality effectively that solves the beam distortion, increase the effective power.

4 - Light Weight

To compared Jinghang CO2 laser tube with the same other general Co2 laser tube, Our Jinghang CO2 laser tube’s weight is lighter than others’.

which will help enterprise to have a more diversify application on CO2 laser tube

5 - Long Warranty

We provide 7*24hours 1 TO 1 after-Service, we committed that our J H LASER tubes 150w have 6 months warranty to you.

6 - Competitive Price Jinghang CO2 laser tube have providing competitive price for all customers, we think our products will make you satisfaction.

Company Contact:

• Posted By: Shijiazhuang Jinghang Laser Technology Co., ltd

• Phone: 18132093019

• Address: Gaoyi, Shijiazhuang, Shijiazhuang , Hebei Sheng, China

• Email:

• Website: https://www.jhlasertube.com/

• Business Description: Shijiazhuang Jinghang Laser Technology Co., Ltd. is a high-tech company that specialized in manufacture, R &D CO2 laser optics and CO2 laser machine spare parts, includes CO2 laser tube, focus laser lens, reflective mirrors, CO2 Laser Articulated Arm, power supply and related products.

  In 2013, the factory was built in Gaoyi, Shijiazhuang, more than 6666 square meters.

  With several advanced productions lines, and a group of skilled workers, the annual production quantity of Jinghang Laser tubes can reach up more than 100,000 pieces.

  We have own expert and technical team and obtained several CO2 laser patents.

  Jinghang Laser tubes have a series of special technologies that ensure the CO2 life is long, high stable power rate, fast - speed cutting.

  Our products have been exported to many countries and obtained good reputation.

  Jinghang Laser would like to approach you and establish relationship with you, based on the best quality as well as comprehensive after-sales service, Jinghang Laser will be your reliable partner.
