High Voltage Rib Cooled Motors

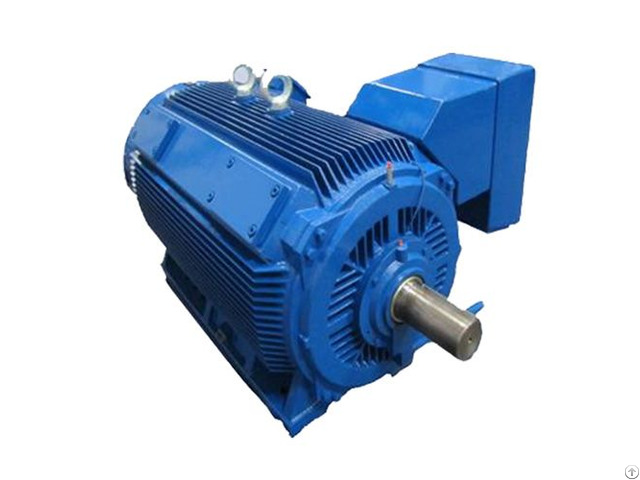

High Voltage Ribbed Cold Motor is a high-performance cast iron casing motor.

The motor is a fully enclosed air-cooled motor.

The newly designed cast iron casing has fins that conform to the air flow direction and have excellent heat dissipation during motor operation.

This series of motors has an external external fan and the fan is made of steel.

The High Voltage Ribbed Cold Motor rotor is a squirrel-cage structure with a state-of-the-art copper cage rotor that ensures greater load on the smooth running of the motor.

Moreover, the rotor copper strip is processed by the in-tank fastening process, and thus has high reliability.

The High Voltage Ribbed Cold Motor stator features an external press fit.

The stator winding adopts Class F insulation material and anti-corona material.

The winding end is fixed by special lashing process, which is firm and reliable.

The whole stator is treated with vacuum pressure immersion paint F-grade solventless paint (VPI).

Thus, the motor has excellent and reliable insulation properties and moisture and impact resistance.

High Voltage Ribbed Cold Motor is a compact enclosed cage rotor three-phase asynchronous machine.

The power class, electrical performance and installation dimensions and tolerances of the HXR series motors are in compliance with the International Electrotechnical Commission standard IEC/NEMA/CSA standards.

The motor protection class is IP55 or IP56, and the cooling method is IC411 or IC416.

HXR series motors have the advantages of small size, compact structure, high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.

This series of motors can be used to drive a variety of different machines.

Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used for coal mines, machinery industry, power plants and various industrial and mining enterprises for the prime mover.

The structure and installation form of High Voltage Ribbed Cold Motor is IMB3 and IMB35 - The quota is a continuous rating based on the continuous working system (s1) with a frequency of 50 Hz or 60 Hz and a rated voltage of 3 kV/6 Kv/10 Kv.

Other voltage levels or special requirements can also be made.

ZCL Motor Paraeters:

Motor center high range: H355-H560

Rated power range: 150Kw-2250Kw

Rated voltage: 3000V/6000V/6600V/10000V/ 11000V

Number of motor poles: 2/4/6/8

Protection level: IP54/IP55

Cooling method: IC411

Rated frequency: 50Hz/60Hz

Insulation class: Class F

Installation method: IMB3/ IMB35/IMV1
