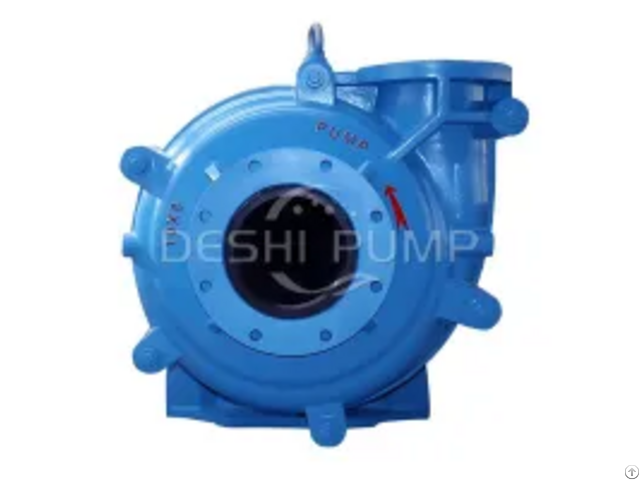

Horizontal Rubber Slurry Pump

HSR Rubber Slurry Pump is the similar structure with HS metal lined slurry pump.

The main difference between HS and HSR is the material of wear parts.

Rubber flow parts can be perfectly interchangeable with the metal parts.

Horizontal Rubber Slurry Pump for Sale-the perfect solution for your pumping needs.

This high-performance pump is designed to handle even the most abrasive and corrosive slurries, making it ideal for use in industries such as mining, construction, and chemical processing.

The Horizontal Rubber Slurry Pump is made of high-quality materials, including a durable rubber lining that provides excellent resistance to wear and tear.

Its horizontal design ensures efficient and reliable pumping, while its compact size makes it easy to install and maintain.

Overview:

HSR Rubber Slurry Pump is the similar structure with HS metal lined slurry pump.

The main difference between HS and HSR is the material of wear parts.

Rubber flow parts can be perfectly interchangeable with the metal parts.

Clients can choose different material parts according to the slurry liquid conditions, such as DR26, DR55, DR33, DR08, DS42, DS10, DS12, DS01, DS02, DS21, DS31, DU03, DU27, DU38, etc.

Rubber lined slurry pumps are more suitable in delivering high corrosive or abrasive slurries of small particle size without hard or sharp edges.

Discharge Size: 1" to 18"

Flow Rate: 3.6-4680 m3/h

Head: 7~50 m

Handing solids: 0-130mm

Slurry Concentration: 0%-70%

Pump casings Material: Ductile Cast Iron

Impeller, Liner, Throatbush: Natural Rubber; Synthetic Rubber

The wear parts Material Code: DR26, DR55, DR33, DR08, DS42, DS10, DS12, DS01, DS02, DS21, DS31, DU03, DU27, DU38 etc

Horizontal Rubber Slurry Pump Detailed Features:

1 - Well designed for interchangeable wet parts with metal lined slurry pump.

2 - Casing - Casing halves of cast or ductile iron with external reinforcing ribs contain the wear liners and provide high operating pressure capabilities

3 - Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.

Only four through bolts are required to hold the cartridge type housing in the frame.

4 - Pump frame - A rigid, one-piece casting cradles the “cartridge” shaft and bearing assembly.

A minimal number of through bolts hold the pump casing to the frame.

An easy means of external impeller adjustment is provided in a convenient position below the bearing housing.

5 - Impeller - Front and rear shrouds have pump-out vanes.

This design reduces recirculation and seal contamination, Elastomer impellers are made from rubber coated high tensile steel, Cast-in impeller threads require no impeller insert or nuts.

6 - Liners - Rubber elastomer liners are interchangeable with hard metal.

The elastomer liners are bolted, not bonded, to the outer casing.

Elastomer seal rings back all liner joints.

7 - Shaft seal - Packing seal, Centrifugal seal, and Mechanical seal.

8 - Driving type - Flexible coupling, V-belt with pulleys, Gearbox, VFD, SCR control etc.

9 - The discharge branch can be oriented to any eight positions at the interval of 45 degrees;

10 - Easy to install and maintain in on-site application.

Whether you need to pump mud, sand, or other abrasive materials, the Horizontal Rubber Slurry Pump for Sale is the perfect choice.

So why wait? Order yours today and experience the difference in pumping performance and efficiency!
