Howo Truck Mounted Crane - China

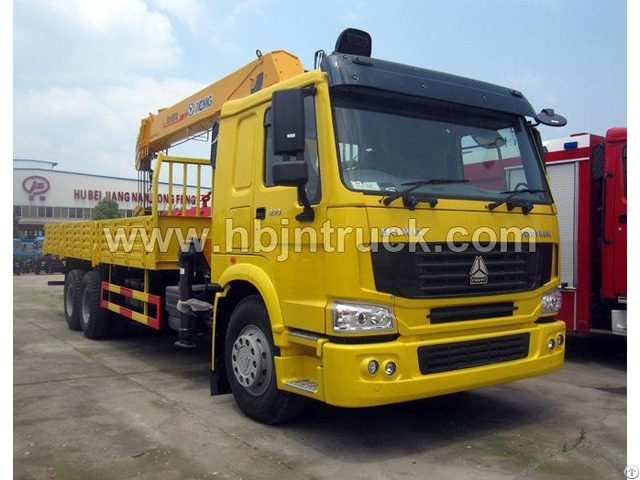

Howo Truck Mounted Crane

Crane truck are efficient at moving iron, stone or sand around construction sites.

the extensible boom and slewing system make them suitable for high-rise or heavy-weight work too.

crane truck differ in lifting capacity and working radius, offering choice for different job requirements.

Features:

---Howo chassis, China high quality heavy duty chassis brand.

---Howo engine, adopt Europe advanced technology.

---XCMG crane, world famous engine brand.

---Cargo Box length 6 meter, width 2.3 meter, height 0.8 meter.

Truck with Crane Supplier: Hubei Jiangnan Special Automobile Co., Ltd

Vehicle Model JDF5257JSQZ

Chassis Brand Howo

Cabin Single row and a half, 2+1 seats

Drive Type 6 x 4, LHD / RHD

Wheelbase 4600+1350 mm

Overall Dimension (L x W x H) 10100 x 2500 x 3710 mm

Cargo Box Dimension ( L x W x H) 6000 x 2300 x 800 mm

GVW 25000 kg

Kerb Weight 16100 kg

Payload Weight 8770 kg

Engine Engine Model WD615.62 Make Sinotruk Rated Power 196 kw / 266 ps Displacement 9726 ml Type Diesel engine, euro 2

Tire Size 11.00-20

Fuel Tank Size 400 L

Crane Crane Model SQ12SK3Q Max Lifting Capacity 12000 kg Max Lifting Moment 30 T.

M Recommend Power 30 kw Max Oil Flow of Hydraulic System 63 L/min Max Pressure of Hydraulic System 26 MPa Oil Tank Capacity 160 L Rotation Angle All Rotation Crane Weight 4200 kg Installation Space 1300 mm

SQ12SK3Q Lifting capability diagram

Working radius (m) 2.5 7.8 7 9 12.5

Lifting capacity (kg) 12000 6000 3500 2700 18
