Intel Core I5 Industrial Fanless Mini Box Pc - China

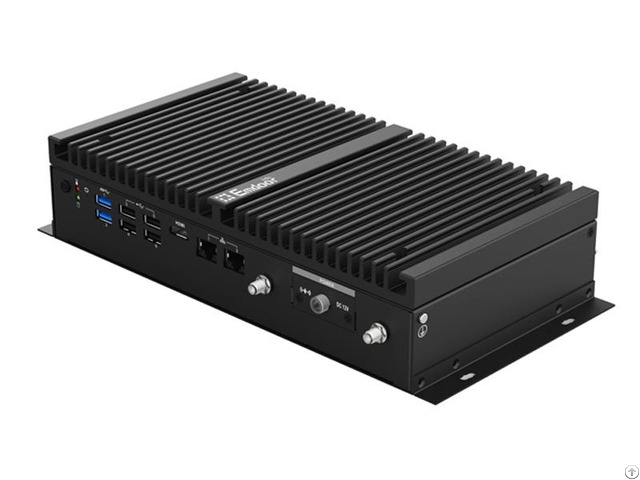

Intel Core i5 industrial fanless mini box pc

PRODUCT FEATURES

1).

Industry Solutions/Products Usage:

-Retail, Services, Office, Business, Smart Home, Smart Factory

2).

Main Points:

- Intel® Core™ i5-8250U (Kaby Lake-R) /Linux/Windows 10 Home/IoT

-Fanless design / Network wakeup / Hardware Watchdog

-eMMC/ SSD/ HDD/ RS232x4/ GBEx2/ USBx6/HDMI/VGA/DIO

We can provide: rugged handheld, industrial PDA, Android rugged handheld, rugged tablet PC, 8 inch Rugged Tablet PC, Rugged notebook, Windows 10 rugged notebook, Industry Fanless Mini PC.

SPECIFICATION

CPU Intel® Core™ i5-8250U (Kaby Lake-R)

OS Linux / Windows 10 Home/IoT

RAM 4GB/8GB DDR3L

ROM Standard eMMC5.0 32GB/64GB/128GB/256GB/512 GB

SATAⅢ M.

2 2280 SSD 64GB/128GB/256GB/512GB Optional

SATAⅢ 2.5 inch 5/ 7/ 9.5mm Optional

WiFi intel 3165 M.

2 2230 / IEEE 802.11abgn/ac/d/e/i/h/w

Bluetooth 2.4G/5G Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 4.1, 4.2 (BLE)

3G/4G HUAWEI MU709s miniPCIE Optional

Ethernet 10M/100M/1000Mbps Intel i210-IT GBE, support Wake On Lan

I/O Ports USB3.0 Type-A x4, HDMI 1.4A Type A x1, VGA DB15 x1, RJ45 x2, RS232 DB9 x3, 8bit DIO DB9 x1, Line-in 3.5mm Phone Jack x1, Line-out 3.5mm Phone Jack x1, 5.5/2.5mm DC Jack x1

SIM Full Demension SIM x2

Antenna Antenna1(WiFi+BTx1 ), Antenna2(3G/4G x2)

RTC/Watch dogs real-time clock, time-switch, auto restart after crashed

Extensive

connector miniPCIE x1, Extensive newtork port, USB, Serial port

Off & On Timer

Wake on Lan For Bios / For RJ45

Adaptor DC 12V/5A

Environment -20~70℃ (With wide temperature rang SSD or eMMC)

With HDD operating temperature is 0~45℃

Company Contact:

• Posted By: Shenzhen Emdoor Imformation Co.,Ltd.

• Phone: +86-181 2399 6234

• Address: 3/F, 5th Bld, Mei Sheng Hui Gu Technology Park, No.83 Daobao Rd, Bao'an district, Shenzhen city, Guangdong , China

• Email:

• Website: https://www.emdoorrugged.com/

• Business Description: Emdoor Information Co., Ltd., was established in 2008, a subsidiary currently with over 200 employees of Emdoor Group/Emdoor, the domestic high-tech R&D company of rugged tablets and notebook, and also the biggest domestic IDH of industry terminal and customization.

  Emdoor information, basing on the sustainable development of industry's terminal technology, independently proceeds the R&D of fully rugged product series, including rugged PDA (4''/5''/6''), rugged tablet (7''/8''/10''/11.6''/12.2 ''), rugged and semi-rugged notebook 11.6''/12.2''/14''/15.6'' ), with IP grade in 65 ~ 68, US military shock-proof standard MIL-STD-810G, and also with technologies in 2G / 3G / 4G, dual Wi-Fi, Bluetooth 4.0/4.2, Beidou / GPS, NFC, one-dimensional code / two-dimensional code scanning, ID and fingerprints recognition.

  And also Emdoor Information provides a variety of accessories in order to meet customers demands in various industries such as aviation, aerospace, automobile, police, education, exploration, fishing, animal husbandry, finance and so on.

  Emdoor Information has also launched commercial display terminal, industrial PC box, POS machines and other individualization products, and provides solutions of network digital signage with HW & SW integration via Microsoft cloud data and cloud computing platform, which are widely applied in life, office, education, logistics, automotive, finance, business, smart home and other related industries.

  Emdoor information can also provide customers with industrial design, mould development, HW and SW development, mechanical design, technical support and other customized, integrated solutions to help customers to achieve success in digital community.
