Ka 98cm Vsat Satellite Dish Antenna - China

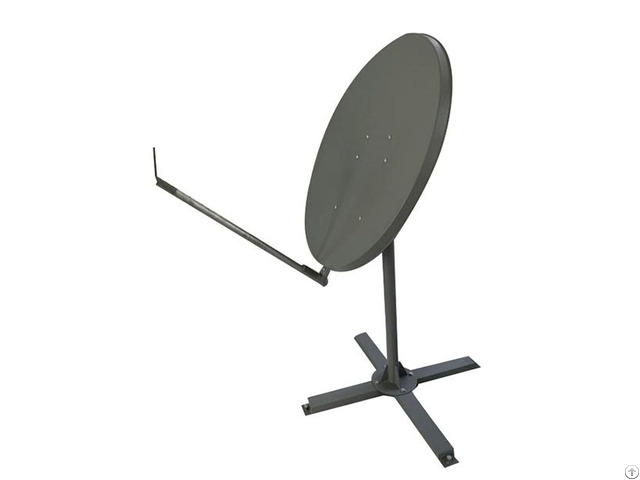

Ka 98cm VSAT satellite dish antenna steel made solid antenna

The well designed reflector surfaces provide superior gain and sidelobes proformance at ka-band frequence.

PRODUCT DESCRIPTION

Easy and quick to install.

Angle adjustment device of dishes can be easily operated, and accuracy is very high.

The accuracy of the reflector surfaces are very high.

Thanks for using good coating material and good manufacturing method, the satellite dish antenna’s anti-corrosion is very good.

Strict quality control ensure the quality of the satellite dish antennas.

Bulk and single packaging.

Ku Band Satellite Dish Supplier: Beijing Bafang Ruijie technology co., ltd

ANTENNA PARAMETERS

Type KA 98cm dish

Frequency RX: 17.7--22 GHz; TX: 27--31GHz

Reflector size 1033mm x 980 mm

41.20 dB

Efficiency RX: 60% min >=60%;TX: 60% min >=60%

Reflector RMS value <=0.3mm

Elevation angle range 0° ~ 85°

Azimuth Alignment( 0～360°) 0° ~ 360°

Focus length 735 mm

F/D Ratio 0.75

Offset Angle 22.4°

Ambient Temperature (-40°C ~ 60°C)

Material of construction Galvanized Steel

Relative Humidity 0% ~ 100%

Surface Finish Powder coating

powder color 7P507

Total Weight 32.765kgs

Beijing Bafang Ruijie Technology Co., Ltd. is a professional company specializing in the research and development, production, sales and technical services of satellite antennas.

Antennas include all series of satellite receiving antenna, satellite communication antenna, customized antenna, etc.

Antenna size from 0.35m to 16m, More than 100 type.

we have worked hard on satellite antenna researching and producing for a long time.
