Kings 850pro Large Print Volume Sla 3d Printer - China

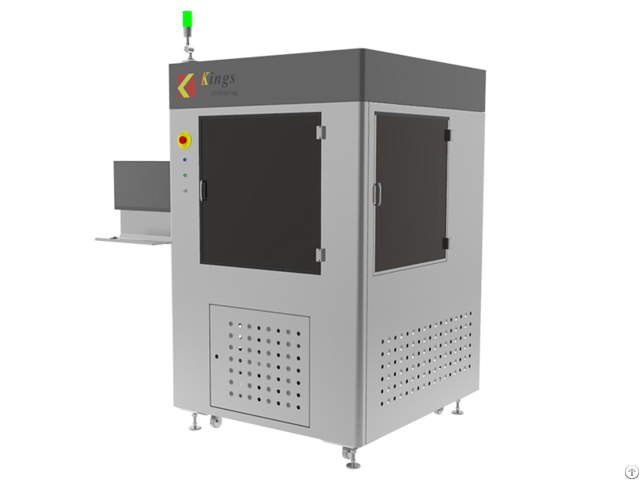

KINGS 850Pro Large Print Volume SLA 3D Printer

Basic information

Construction Size: 850mm(X)×850mm(Y)×550mm (Z)

Equipment Size (without display): 135cm(W)×146cm(L)×222cm (H)

Equipment Weight: about 1380kg

Rated Dissipation: 1.8KVA

Product Details

BASIC INFORMATION

Max Printing Size 850*850*500mm

Machine Size 140cm(W)*149cm(D)*247cm(H )

Rated Power Consumption 1.8KVA

Machine Weight 1900kg

LASER SYSTEM Laser Type Solid-state frequency tripled Nd: YV04

Wavelength 355nm

Power Resin Surface Power≥ 300 mW

OPTICAL & SCANNING SYSTEM

Scanning Mode Germanic galvanometer scanner

Variable Beam System Galvo/Closed-loop

Beam Size (diameter @1/e2) 0.075-0.8mm(Variable Beam)

Max Scanning Speed 15.0m/s

RECOATING SYSTEM

Main Sturcture Marble recoater frame, marble elevator holder and marble scanning system base

Coating Mode Intelligent position vacuum recoating

Vertical Resolution Ratio 0.0005mm

Repeat Positioning Accuracy ±0.01mm

Layer Thickness 0.05mm~0.25mm

Accuracy L≤150mm, ±0.1mm;

L＞150mm, ±0.1%*L

CONTROL SOFTWARE

Motion Control System Closed-loop

Machine Control Software KINGS 3D control software

Input Data File Format STL/SLC

Operating System Windows 7/10

Network Type and Protocol Ethernet, TCP/IP

INSTALLATION CONDITION

Electrical Requirement 200-240VAC 50/60Hz, single-phase, 10A

Ambient Temperature 20-26ºC (72-79℉)

Relative Humidity ＜40%, non-condensing

First Tank Resin About 550kg

WARRANTY

Machine Two years

Laser Two years
