Ku 120cm Steel Vsat Satellite Dish - China

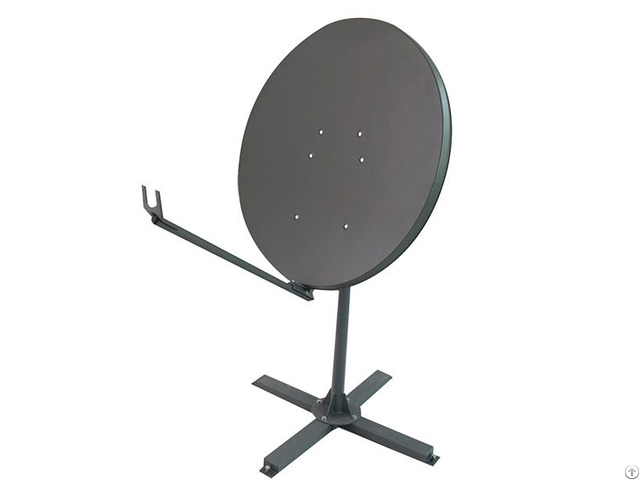

Ku-120cm steel VSAT satellite dish with easy angle adjustment

The well designed and checked satellite dish provide superior gain and sidelobe performance at KU-band.

PRODUCT DESCRIPTION

Easy to install.

Solid structure, after installation, it does not shake in heavy wind.

Deal to the good designing, we can adjust the reflector angle accuracy and easily.

Corrosion resistance is very good.

Easy to maintenance ANTENNA PARAMETERS

Type KU 120cm dish

Effective Aperture 120cm

Frequency RX: 10.95-12.75GHz;

TX: 13.75-14.50GHz

Reflector RMS value <=0.3mm

F/D Ratio 0.746

Offset Angle 22.4°

Ambient Temperature (-40°C ~ 60°C)

Material of construction Galvanized Steel

Relative Humidity 0% ~ 100%

Surface Finish Powder coating

powder color 7P507

Total Weight 30kgs

Beijing Bafang Ruijie Technology Co., Ltd. is a professional company specializing in the research and development, production, sales and technical services of satellite antennas.

Antennas include all series of satellite receiving antenna, satellite communication antenna, customized antenna, etc.

Antenna size from 0.35m to 16m, More than 100 type.

we have worked hard on satellite antenna researching and producing for a long time.

More information visit our website.
