Msm8953 Sdm450 System On Module - China

price: 1.00 Dollar US$

Msm8953 Sdm450 System On Module

Products Photos Catalog Msm8953 Sdm450 Module Photos Catalog

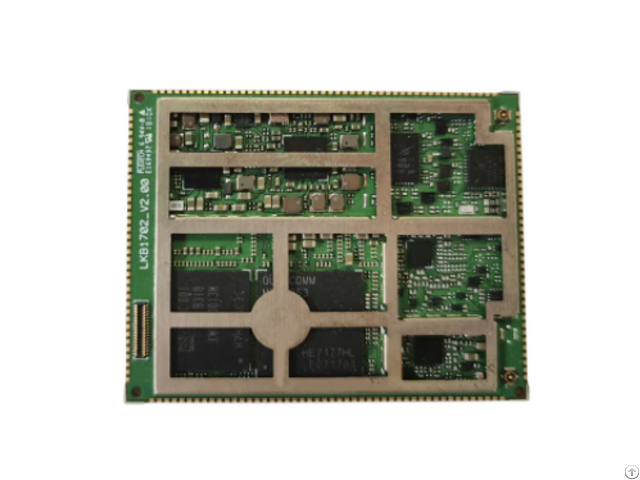

MSM8953 SDM450 System on Module

G8953 system on module takes Qualcomm MSM8953 as CPU, it support 4G call.

SOM onboard bluetooth, wifi, 4G, Beidou GPS, no need for peripherals module, and max LCD resolution 1920*1280 - It supports FDD-LTE / TD-LTE / TD-SCDMA / WCDMA / EVDO / CDMA / EDGE / GSM communication bands.

G8953 System on Module Structure Parameters

Outlook Stamp hole

Size: 42mm x 54mm x 2.8mm

Craft: 8-layer gold immersion PCB

G8953 System on Module System Configuration

CPU: MSM8953, cortex –A53 octa core, 2.0 Ghz

RAM: 1GB DDR3 as standard, and 2GB/3GB/4GB optional

EMMC: 8GB/16GB/32GB/64GB optional, and 8GB as standard.

G8953 System on Module Interface Features

Outlook: PCBA

Dimension: 42mm x 54mm x 2.8mm

Hardware Platform: MSM8953 octa core 2.0Ghz

Memory: 1GB&8GB as standard, 1GB & 16GB, 2GB&16GB, 2GB&32GB, 4GB & 64GB as optional

Process : 14nm

GPU: Adreno 506

Extended memory(T card) : Max 128GB

Camera: 4 lane MIPI *2, support 21M max

LCD: 4 lane MIPI, max resolution 1920*1280

TP: I2C

SD: SD3.0, max support 128G

I2C: Sensor, NFC, TP, CAM

I2S Supported, with fingerprint SPI reusable

UART: 2 lane, 1 lane standard UART

UIM: 2 lane

SPI: 2lane, one lane with UART reusable

USB: USB 2.0 *1

OTG: Support

Key: 3, power, V+/V-, can extended with GPIO

Handset: 1 lane

Speaker: External speaker

MIC: 3 lane

WIFI: 802.11 b/g/n/a/ac

Bluetooth : V4.1

IR: Not support

GPS : GPS, AGPS, GLONASS, BEIDOU

NFC: Support

Charge: Qc3.0, DC charge

FM: Support

Fingerprint: Support, with SPI reusable

ADC: 2

PWM: 2

Others : B2B 30pin


Company Contact:


  • Phone: 18829905418

  • Address: Room 5005B, East Laobing Building, Xingye Rd 3012th, Xixiang, Bao'an Dist, Shenzhen , Guangdong , China

  • Email: Email


Published date: August 4, 2021

  • Business Description: As a supplier of ARM platform development technology solution, Shenzhen Graperain Technology Co., Ltd dedicates to development, production and value-added service of software and hardware in embedded area when it was founded.

    Based on 32/64 bit ARM processor which is widely used in embedded industry, Graperain streamlined circuit design, control hardware cost strictly and combine operating systems like Linux, Ubuntu and Android to release excellent solutions for factories and R & D institutions.

    Focused on Samsung, Rockchip and Snapdragon embedded ARM development platform, with processors such as S5P4418, S5P6818, RK3288, RK3399, PX30, Snapdragon MSM8917, MSM8937, MSM8953 etc., clients can customize professional solutions, including hardware platform design(Schematic and PCB design), operating system customization, drivers development etc.

    Customized development boards are widely used in industry, finance, airport, customs, police, hospital, home smart, education, consumer electronics etc.
