New Generation Standard 14 Heads Multihead Weigher - China

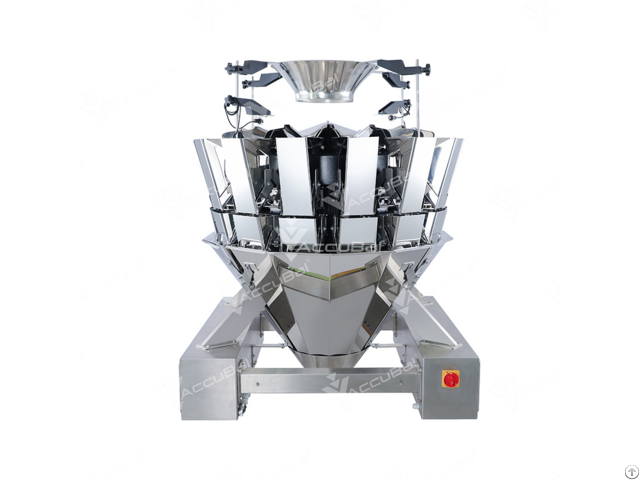

New Generation Standard 14 Heads Multihead Weigher

Introduction

Our new generation economic modular 14 Heads Weigher can weigh and count foods and lumpy products - from snacks and confectionery via granulates to metal and plastic parts.

The multihead weighers with Canbus system to achieve fast, precise and maximum weight accuracy.

Main Feature

Strength of standard combination weigher: wide rage of application, high price competitiveness, reliable performace.

10.4 inch color display, lots of language can be chosen.

Speed and amplitude can be adjusted in operation process.

Weigh hopper followed by discharge, effectively prevents blockages.

Amplitude of each linear feeder can be adjusted separately.

99 of present programs are preprogrammed in stock.

Parameter

Model AB-E14-2C-1Xp AB-E14-2C-3Xp

Hopper No.

14 14

Actuator Housing Stainless steel Stainless steel

Max.

Weighing Speed (WPM) ≤105BPM ≤105BPM

Average Tolerance 0.5g-1.5g 0.5g-1.5g

Hopper Volume 1.6Liter 3Liter

Max.

Single Discharge 3000ml 6000ml

Single Weigh 20g-1000g 20g-1000g

Single Max Length ≤80mm ≤120mm

Water Proof IP64/IP65 Optional

Preset Number Program 99

Display 10.4 inch TFT colour screen

Power Single AC 220±10%; 50/60Hz; 3.6KW At least 18 Improvements of 4.0 G

CANBus system √ Timing hopper high speed control system √

Actuator individual boards control √ Allow setting LF amplitude and time individually when machine running √

Modular units √ Weight sampling function √

High accuracy and high speed mode √ Trouble alarm √

Clean function to keep hopper open √ "Help" function √

Automatic Calibration without 1KG √ Parameters that can be changed without stop the machine √

Self-diagnosis with failure alarm message without stop machine √ Optimization times Work automatically √

On-line weight on each hopper during running √ Set stagger-dump function by Interval time √
