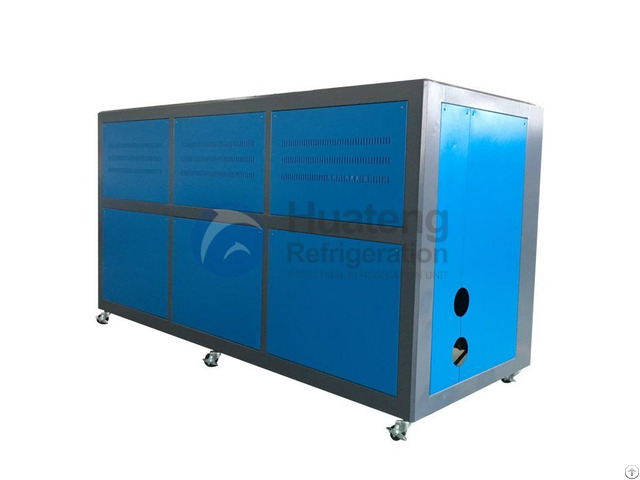

Oem Water Cooled Scroll Chiller - China

price: 15000.00 Dollar US$

Oem Water Cooled Scroll Chiller, Custom Aluminum Industry Water Cooled Chiller

Description:

The series water cooled scroll type chiller cooling capacity from 9KW to 120KW.

This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain.

It is automatically adjusted according to load changes and is more energy efficient.

Features of chiller:

1 - Energy with high efficient

2 - Operation noise and vibration is low

3 - No friction loss

4 - Low starting current

5 - High system sustainability

6 - Environmental protection Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective Water cooled scroll type chiller(R-134a)

Model HTB-M10S HTB-M15S HTB-M20S HTB-M23S HTB-M30S HTB-M30S HTB-M41S HTB-M61S HTB-M82S

Cooling

Capacity KW 9.5 15.1 20.4 23.2 29.8 30.2 40.8 61.2 81.6 Kcal/Hr 8170 12986 17544 19952 25628 25972 35088 52632 70176 RT 2.7 4.29 5.8 6.6 8.47 8.59 11.6 17.4 23.2

Power 50HZ 3P-380V-50HZ

Comprosser Mode Full closed high efficiency flexible scroll compressor Input power(KW) 2.19 3.49 4.55 5 6.8 6.98 9.18 13.65 18.2 Rated load current(A) 5.4 9.25 11.2 10.8 16.7 18.5 22.4 33.6 44.8

Wiring specification 4 6 6 6 10 10 25 25 25

Add unloading way 0, 100% 0, 50%, 100% 0, 33%, 66%, 100% 0, 25%, 50%, 75%, 100%

Condensor Cooling water temp(℃) Inlet temp 30℃/outlet temp 35℃ Cooling water flow(m³/h) 2.04 3.25 4.39 4.99 6.41 6.49 8.77 13.16 17.54 Waterpipe diameter(DN) 32 32 40 40 40 40 50 50 65

Evaporater Freeze water temp(℃) Inlet temp 12℃/outlet temp 7℃ Freeze water flow(m³/h) 1.63 2.6 3.51 3.99 5.13 5.19 7.02 10.53 14.04 Waterpipe diameter(DN) 32 32 32 32 40 40 40 50 65

Safeguard Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc.

Size L(mm) 1210 1250 1250 1400 1400 1500 1640 1900 2500 W(mm) 650 700 700 700 700 700 700 850 800 H(mm) 1080 1100 1100 1100 1100 1100 1100 1250 1250

Units Weight Kg 240 300 320 340 370 440 560 630 720 Note:

1, Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2, Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank, non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3, In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4, The specific parameters for non-standard products, welcome consulting our technical department.

Our company various industrial chiller with competitive price include: water chiller machine for supermarket; Semi closed Screw Type Chiller; 100 ton Refrigerant Air cooled Heat Pump Unit; school Scroll Type Pump Water Heater; -30 degree low temperature water chiller for agriculture.


Company Contact:


  • Phone: 0086-0512-69222083

  • Address: Room 305-307,Yuanlian Building,No.1018,Jiayuan Road,Xiangcheng District, Suzhou City, Jiangsu Province, China

  • Email: Email


Published date: May 17, 2019

  • Business Description: Jiangsu Huazhao Refrigeration Equipment CO., Ltd. is a manufacturing enterprise focus on high quality industrial refrigeration equipment research and development, production and sales.

    Our company various industrial chiller with competitive price include: Air cooled chiller; Water cooled chiller; Low temperature glycol/brine water cooled chiller; Heat pump hot water chiller; Maglev inverter centrifugal water chiller; Oxidation dedicated water cooled chiller.

    Huazhao have been focusing on provide professional solutions for all our foreign and domestic customer in different business and earn a good reputation, such as America, Argentina, Uruguay, Colombia, Chile, Sudan, Saudi Arabia, Oman, Thailand, Indonesia, Qatar, Bangladesh, Somalia etc.

    Our company is the leading international chiller supplier, if you need know price about chiller, E-mail and call are welcome.
