Open Frame Pcap Glass Capacitive Touch Panel - China
price: contact company for price

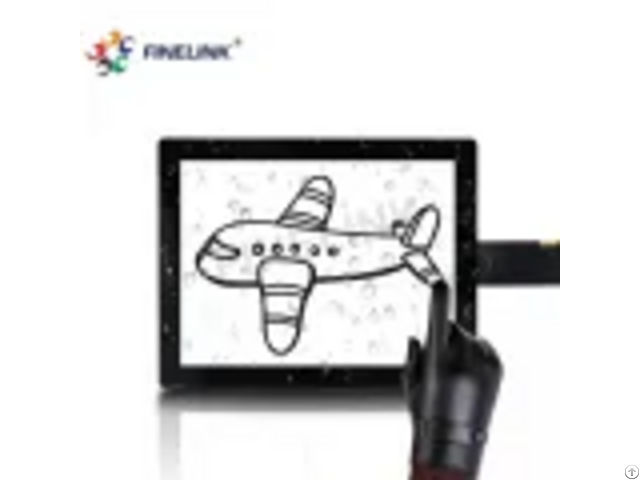

10.4 Inch Open Frame Pcap Glass Capacitive Touch Panel
This Projected Capacitive Touch Panel can be multi-touch (max to be 10 points touch).
Note1：In order to make a touch panel operate normally, please make sure that the host device is grounded.
Note2：All environmental characteristics listed as above all should be less than1 atmosphere.
Note3：Do not store a touch panel in direct sunlight.
Specification
Item 10.4 inch capacitive touch panel
Ratio 4: 3
Structure G+G
Type Capacitive
Touch controller EETI/ILITEK
Connection COB
Lens OD 245*192mm
Sensor OD 235*175mm
Cover glass(T) 2mm
SENSOR(T) 0.7mm
Surface hardness ≥6H
Transmittance ≥85%
Touch points 10 Points
Operating Temperature -20℃~+60℃
Interface Type USB, RS232, I2C
Color Black, White, Transparent, colors optional WinXP/7/8/10, Android, IOS, Mac, Linux
Application Industrial, medical, banking, consumer, military, education, HMI
Warranty 12 Months(3 years maximum)
Company Contact:
- Posted By: Hubei Finelink Photoelectric Co., Ltd.
- Phone: 18171086866
- Address: 5th Floor, Xinjianxing Science & Technology Industry Park, Guangqiao Avenue, Guangming, Shenzhen , Guangdong , China
- Email:
- Website: https://www.finelink-china.com/
Published date: October 24, 2022
- Business Description: FINELINK Photoelectric is a national high-tech enterprise, which dedicates to design, R&D, production and sale of capacitive touch panel (CTP) and optical bonding.
Shenzhen FINELINK was established in 2011, with a total area of about 5000㎡.
Mainly provide the touch panel and optical bonding solutions.
Hubei FINELINK was established in 2019 - Mainly in cover glass, sensor glass, touch panel (GG/GFF) and optical bonding, electronic terminal assembly.
Factory facility is covering 25,000 ㎡ in Hubei.
The products can not only meet the large-scale production, but also to meet the customer's customized requirements.
