Portable Hardness Tester - China

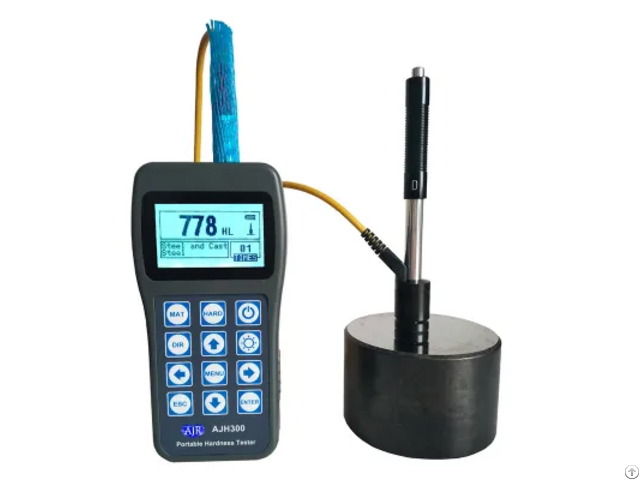

Portable Hardness Tester

Features

● Compact plastic case, suitable for use under poor working conditions.

Test at any angle, even upside down.

● Wide measuring range.

It can measure the hardness of all metallic materials.

Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

● Large LCD screen, showing all functions and parameters.

With EL background light.

● Large capacity memory could store 600 groups information.

● Data Software to connect with PC via USB port.

Micro printer support

● Software calibration function.

Technical Specifications

● Measuring range: (170-960) HLD, (17-68.5) HRC, (19-651) HB, (80-976) HV, (30-100) HS, (59-85) HRA, (13-100)HRB

● Measuring direction: 360° ( ↓ ↖ ↗ ↘ ↙ → ← ↑ )

● Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS

● Display: LCD

● Data memory: max.

500 groups (relative to impact times 32～1)

● Working voltage: 3V (2 AA size alkaline battery)

● Continuous working period: about 100 hours (With backlight off)

● Communication interface: USB Main Application

● Die cavity of molds

● Bearings and other parts

● Failure analysis of pressure vessel, steam generator and other equipment

● Heavy work piece

● The installed machinery and permanently assembled parts.

● Testing surface of a small hollow space

● Material identification in the warehouse of metallic materials

● Rapid testing in large range and multi-measuring areas for large-scale work piece

Configuration

No.

Item Qty Remarks

Standard Configuration 1 AJH300 Main body 1 2 Impact device 1 D type 3 Standard test block 1 4 Nylon brush A 1 5 Small support ring 1 6 Manual 1 7 Data Software 1 8 USB cable 1 9 Carry Case 1 10 Operating instruction 1 11 Calibration Certification 1 12 Guarantee Card 1

Optional Configuration 13 Cleaning brush (II) 1 For G type impact device 14 Other type of impact devices and support rings Refer to Table 3 and Table 4 in the appendix.
