Power Cable For E Bike Motor - China

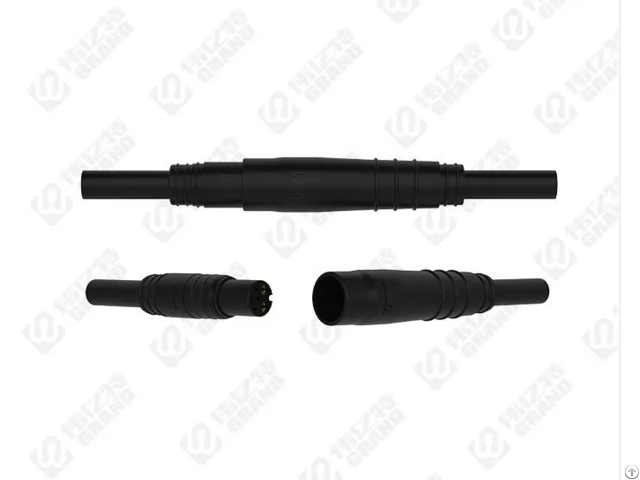

Power cable for E bike motor bafang BBS mid motor

Name power cable

Model WYT-P-*095AT

Inlet/Outlet 2cores /6 cores

Rated voltage 60V AC/DC

Rated current power 15A, signal 2A

Withstand voltage 500V

Insulation resistance ≥20MΩ

Contact resistance ≤10mΩ

Mechanical life 200 times

Insertion force ≤100N

Pull out force ≥50N

Working temperature -25℃～+85℃

Protection grade IP66

Dimensions Male 12.6mm, Female 10mm

Overalllength 75mm

Contact element material gold-plating Copper alloy

Wire specification 2.0mm²+0.20mm²

ATINGS/CHARACTERISTICS

UL Recognized

RoHS Compliant

48 V

1To 3

MATERIAL

FEATURES

Most common Y splitter connector cable for Electric bike.

Lenght: can be any length needed.

Current: 2A

Life: 200 times

1T3

Waterproof cable: IP65 Sealed waterproof connectors, sturdy and durable

ENVIRONMENTS

Ebike controller
