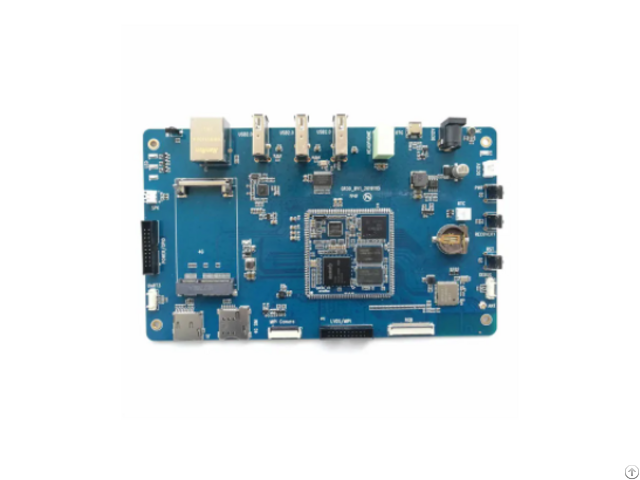

Rockchip PX30 Stamp Hole Development Board

PX30 development board consists of PX30 stamp hole system on module and carrier board.

PX30 system on module is based on Rockchip PX30 64 bit quad-core A35 processor.

The frequency is up to 1.3GHz.

Integrated with ARM Mali-G31 graphics processor, supports OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, 1080p 60fts, H.

264 and H.

265 video decoding.

It is designed with 1GB/2GB DDR, 8GB / 16GB / 32GB eMMC.

Board Parameters

Shape: Stamp hole system on module + carrier board

Size: 186.5mm*115.6mm

Layer: System on module 8-layer/carrier board 4-layer

Parameters

CPU: Rockchip PX30

Frequency: Cortex A35 quad core 1.3GHz

RAM: standard 1GB, can be custom to 2G

eMMC: 4GB/8GB/16GB/32GB eMMC optional, standard 8GB

Power IC: RK809

Graphic and Video Processor: Mali-G31, support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, 1080p 60fps H.

264 and H.

265 video decoding

PX30 Stamp Hole Development Board Parameters

Display: RGB, LVDS, MIPI output

Touch: Capacitive touch.

USB or serial port can expand resistive touch

Audio: AC97/IIS interface, supports record and play

SD: Single SDIO output channel

EMMC: eMMC onboard, no other pin out

Ethernet: 100M Ethernet

USB HOST: 3 x USB2.0

USB OTG: 1 x OTG 2.0

UART: 2 x UART, support flow control UART

PWM: 2 x PWM output

IIC: 4 x IIC output

SPI: 1 x SPI output

ADC: 2 x ADC output

Camera: 1 x MIPI CSI input

MIPI: 1 x MIPI TX (LVDS multiplexing)

LVDS: 1 x LVDS (MIPI TX multiplexing)
