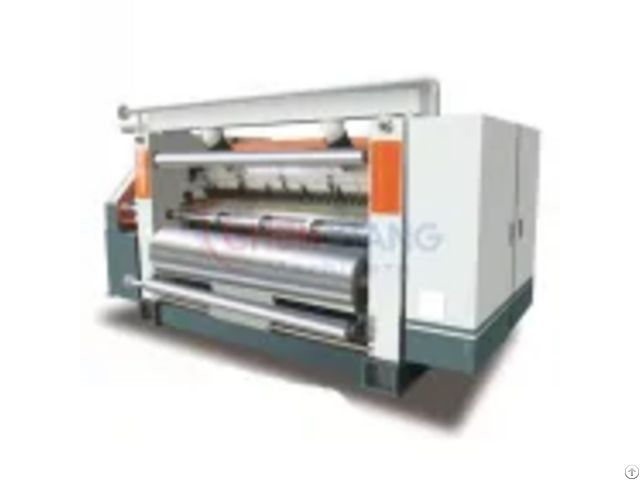

150 Single Facer Corrugation Machine

Structural Features of single facer paper corrugation machine

1 - The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.

2 - The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.

3 - The width of suction slot of lower corrugated roller is not more than 2mm, able to reduce the stripe mark on single side corrugated cardboard.

4 - The transmission part adopts universal joint transmission and separates the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.

5 - The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.

6 - This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.

7 - The glue roller surface is treated with special mesh nicking and chrome-plating.

Get a quote about the single facer corrugation machine.

Technical Parameters of single facer corrugation machine

1 - Design Speed: 150m/min

2 - Working speed: 0-120m/min

3 - Heating type: Steam Heating

4 - Cardan drive with gear box

5 - Corrugated roller alloy steel material

6 - Expiry width: 1400mm, 1600mm, 1800mm, 2000mm

7 - Corrugated flute roller diameter: 280mm &320mm

8 - Material: 48CrMo/Tungsten Carbide

9 - Flute profiles: A, B, C, E, F etc.
