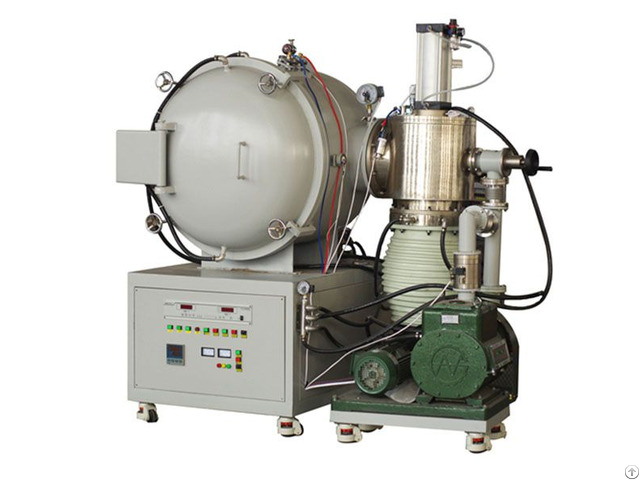

Vacuum Brazing Furnace - China

Labsnova High-temperature Vacuum Brazing Furnace can reach 1350℃, suitable for stainless steel, CBN tools, and Diamond tools brazing in the vacuum environment.

Due to its high vacuum and high temperature, it can also be used for sintering and heat treatment of other workpieces.

Stainless steel brazing

CBN tools brazing

PCD tools brazing

Diamond tools brazing

Copper / sliver / nickel / aluminium base brazing Advantages of Our Brazing Furnace:

No surface oxidation or discoloration

Minimal distortion

Repeatable good brazing quality

Clean, safe, quiet, and efficient Technical Specifications of Vacuum Brazing Furnace:

Technical Specifications

Working Temp.

750℃ (Alloy tube heaters) 1100℃ (Heating wires) 1350℃ (Molybdenum strap heaters )

Furnace chamber 750℃ (Stainless steel sheets) 1100℃ (Ceramic fiberboard) 1350℃ (Molybdenum sheets and Stainless steel sheets )

Furnace Structure Double layers Carbon steel casing with water cooling system to ensure the surface below 30℃ The furnace door inside is polished stainless steel

Working Voltage 380V 50HZ 3P (or according to your standard)

Max.

Power 3KW–180KW

Temperature control system

Temperature Control 50 segments programmable and PID auto control or PLC Upper limited alarm and deviation alarm

Temperature Accuracy +/- 1℃

Heating Rate ＜ 20℃/min

Temperature Alarm Over-temperature alarm Broken thermal-couple alarm

Thermocouple K / S type

Touch Screen 10 inches LED touch screen Over 30 working programs can be set Heating curves can be saved

Vacuum system

Maximum Vacuum 7×10-4Pa

Working Vacuum 7×10-3Pa with Mechanical pump and Diffusion pump Labsnova are a professional manufacturer that produces Glass Reactor, Rotary Evaporator, Glass Reactor, Steam Sterilizer, Furnace, Deep Freezer and etc.

Labsnova is your turn-key-online shop for superior scientific instruments and lab distillation, extraction, lyophilization equipment.

We provide products at competitive factory price, best quality, support OEM, welcome to cooperate.

Labsnova group are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English.

That would save a lot of time for communication.
