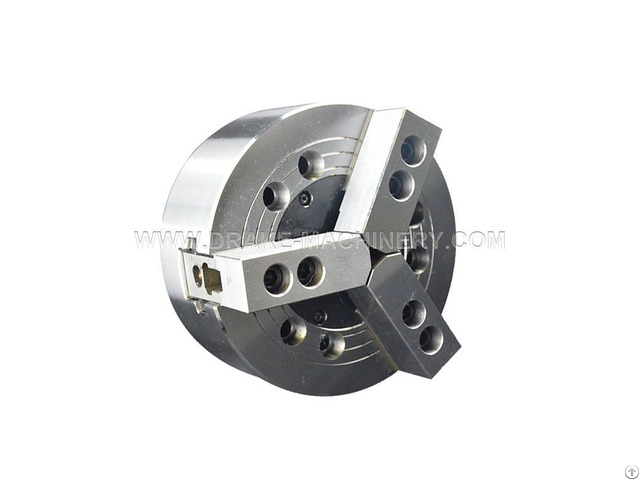

YKD 3-Jaw Chuck Hollow Large Stroke 3 Jaw Lathe Chuck China Power Chuck Product Details

It is a crank type three-jaw chuck with a large-size aperture through the center.

It has a mega-long stroke, a highly rigid construction and a highly clamping precision.

The sliding side was hardened, was ground precisely and was lubricated directly.

The assembling and connecting process is the same as that of the hollow chuck.

It is a compatible replacement for hollow chucks, which means the pull rod doesn’t have to be changed.

Product Parameters

YKD three-jaw hollow large stroke chuck

3-JAW CHUCK HOLLOW LARGE STROKE.

Crank-type three-claw super-large car through hole, super-long claw stroke.

The sliding surfaces are hardened and precision ground and directly lubricated.

The installation and connection method is the same as that of the hollow collet, and it can be compatible and exchanged without changing the tie rod.

High rigidity structure and high clamping accuracy.

DIMENSIONS wedge stroke(mm) Jaw stroke (diameter)(mm) maximum allowable thrust(kgf) maximum clamping force(kgf) maximum oil pressure(kgf) maximum speed (r.p.m) weight (kg) Inertia(kg.

m2) Compatible cylinder Outer diameter clamping range(mm) TYPE YK3-06D 13 26 2400 2650 27 3600 14.8 0.063 1246 ø10-ø168 YK3-08D 16 28 3500 4150 26 3000 24.1 0.175 1552 ø10-ø210 YK3-10D 22 32 4870 5700 27 2400 43.5 0.347 1075 ø18-ø254 DIMENSIONS A B C(H6) D D1 D2 E E1 F Gmax Gmin H J

TYPE YK3-06D 168 90 140 104.78 82.563 116 5 18 45 6.5 -8.5 19 45

YK3-08D 210 100 170 133.35 106.375 150 5 23 52 7 -13 20 52

YK3-10D 254 110 220 171.45 139.719 190 5 18 75 8 -17 25 75 DIMENSIONS Kmax L L1 M N P Qmax Qmin Rmax Rmin S T U

TYPE YK3-06D M55*2 6-M10 15 37 73 20 25.75 13.75 39 27.0 31 12 3-M6

YK3-08D M60*2 6-M12 18 38 95 25 28.25 16.25 49.25 33.25 35 14 3-M6

YK3-10D M85*2 6-M16 22 43 110 30 35.25 17.25 64.25 45.25 40 16 3-M8 Our products including rotary cylinder, power chuck, collet chuck and so on.

It can also be made according to the user’s special needs, provides you with the best integrated solutions for the clamping mechanism.

Depending on “reasonable price, reliable quality, considerate service, constant innovation’’, all of those products ahve been well recognized by users both old and new, and they are widely aplied to NC lathe, common lathe, machining center, driller and miller, welding machines, pipe threading machine, production line equipment, and automatic control system, etc.

To learn more, please click here.
