1000m3 H Air Flow Industrial Fume Extractor 0 1 0 5m Filter Precision - China

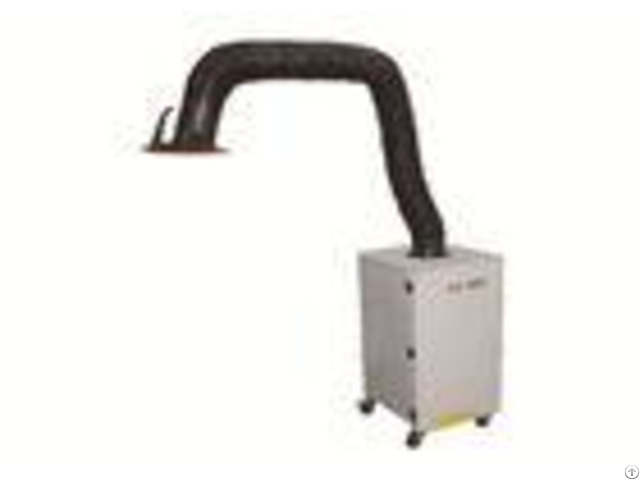

Single arm & small air flow welding smoke purifier with EMC test report Product Introduction 1 - It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

2 - Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake device for easy moving and stationing.

3 - Suction arm can be rotated 360 horizontally, according to actual working condition, suction volume can be adjusted by adjusting volume valve in suction hood.

4 - Fume cleaning: Cleaning use compressed air(0.50.6MPa) to reverse blowing, external compressed air PU hose 10mm.

If need dust removing, just open the valve of the top of equipment, lasting time at 3S8S, more or less.

5 - The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly.

Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPAs filtration efficiency can reach 99.9%.

As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.

6 - The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.5m.

According to the extractors work intensity and the amount of dusts, the usage life of the filter cartridge is different.

Main features: 1 - CE certification and EMC test report is approvable.

2 - Specically suiting for TIG, MIG etc.

small fume volume working conditions.

3 - Small dimension, easy to move, low power and energy consumption, low price.

4 - It's able to change PTFE membrane filter cartridge to get better filtering precision.

5 - Gas-pressue meter from USA, Switzerland switch ( Water proof, dust proof and short-circuit protection) Standard Parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1000100 m3/h | 3 | Motor power | 0.75kW | 4 | Power supply | 220-240V ~/50Hz | 5 | Filtration area | 20 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | Synthetic wood pulp fiber filter paper | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Ash hopper volume | 2 L | 11 | One suction arm | 160mm*2m | 12 | Weight (excluding suction arm) | 985KG | 13 | Dimensions(excluding suction arm) | 510610990mm | - - - - Gas-pressure meter
