220v 50hz Industrial Fume Extractor 510610990mm Overall Dimensions - China

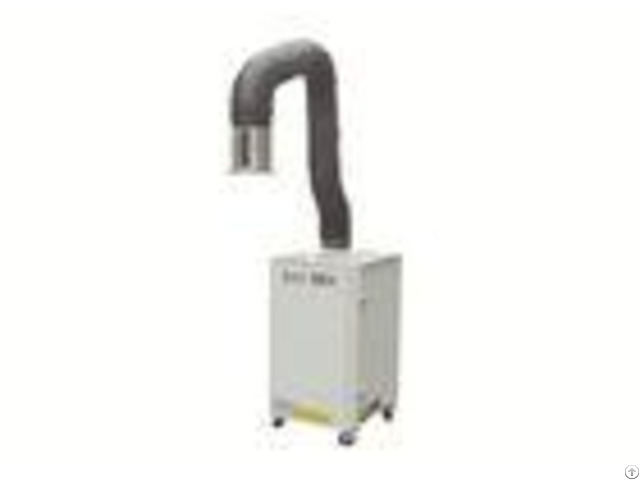

Mobile welding smoke filter in robust quality with one sucntion arm Working Principle

The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly.

Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA s filtration efficiency can reach 99.9%.

As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.

Product introduction Mobile welding fume extractor are designed to be utilized as a respiratory safety engineering control during a variety of welding applications, including TIG welding, MIG welding, maintenance welding, production welding, clean room welding, stick welding, stainless steel tank welding, rapid location welding, and much more.

It has two directional and two rotary polyurethane casters with brake device for easy moving and stationing.

Main feature

1 - One flexible suction arm can rotate 360and the freedom to stay anywhere

2 - The machine adopts HEPA filter.

3 - Depending on needs, 2m, 3m flexible suction arm are available.

4 - Semi-automatic/manual cleaning

5 - CE certification, EMC certification

6 - Internal spark arrestor: Functions as a pre-filter for larger sized particulate Standard Parameters - - - -

No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1000100 m3/h | 3 | Motor power | 0.75kW | 4 | Power supply | 220-240V ~/50Hz | 5 | Filtration area | 20 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | Synthetic wood pulp fiber filter paper | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Ash hopper volume | 2 L | 11 | One suction arm | 160mm*2m | 12 | Weight (excluding suction arm) | 985KG | 13 | Dimensions(excluding suction arm) | 510610990mm | - - - - Company profile

Shanghai Kaisen Environmental Technology Co., Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors.

Since 2007 we had been engaged in dust collectors for ten years.

Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.

The products of Kaisen include mobile welding dust collector, wall mounted dust collector, high vacuum dust collector, laser & plasma cutting dust collector, grinding fume collector, 3D printer dust collector and system solution of fume disposal.

Also, Kaisen had passed ISO9001, ISO14001 and OHSAS18001 approvals, most of products are CE certification.
