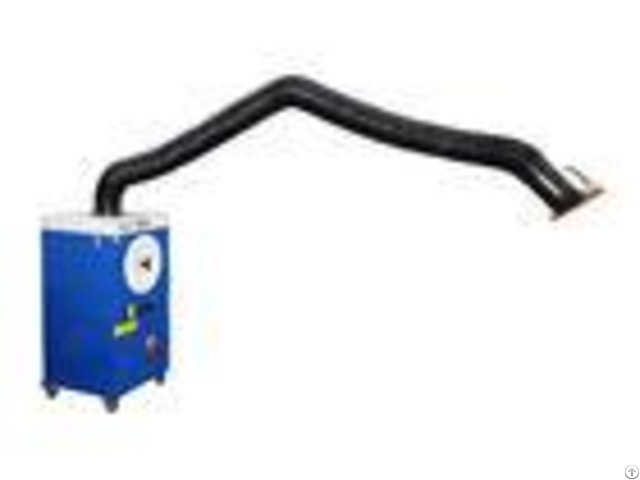

3m Arm Industrial Fume Extractor For Co2 Gas Shield 1 5kw Motor Power - China

Applying toCO2 Gas shield welding fume catcher with 3m arm Working principle

The fume comes from the processing will be sucked into the extractor through the hood, first the fume

passes the 1st layer spark intercept steel mesh which will separate and intercept the spark initially.

And the fume enters into second layer namely filter preventer plate to avoid residual sparks enter into main filter layer directly through ramifying the fume.

At last the fume enters the third layer namely the main filter cartridge for ultimate purification.

Product introduction

1 - Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake device for easy moving and stationing.

It is suitable for the purification of fume and dust generated in all kinds ofwelding, grinding and other places as well as for collecting rare metal particles and precious material.

2 - Suction arm can be rotated by 360 and can reach the position flexibly and easily by pulling the handleon the hood and position in the absence of external force.

Depending on needs, 2m, 3m flexible suctionarm are available.

Suction arm uses high temperature resistant, flame retardant and wearable compositematerial, it will not crack after burning through by spark and has a longer usage life.

The diameter ofsuction arm is 160mm.

3 - The filtration efficiency can reach 99.9%.

As the filtering precision of the main filter cartridge reach the indoor emission standards, after filtration clean air can be directly discharged indoor through the air ventin the bottom of the extractor.

This machine needs to manually take down the filter cartridge for cleaningash.

4 - The filter elment of the welding fume extractor is made of imported PTFE membrane filter material of highfiltration precision, and the filtration precision reaches 0.1 m.

In accordance with the extractor workintensity and the amount of dust, the usage life of the filter is different.

On the control panel, it includes: - Fan Switch - Power Switch - Power indicating light Main features

1 - CE certification is approvable.

2 - Plastic suction hood is able to adjust the air flow through the valve.

3 - Specically suiting for MMA, CO2 Gas shield welding, medium amounts of wedling dust &smoke etc.

4 - Small dimension, easy to move, high precision filtering medium, the cost is cheap.

Standard Parameters - - - -

No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1800100 m3/h | 3 | Motor power | 1.5kW | 4 | Power supply | 380V ~/50Hz | 5 | Filtration area | 8 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | PTFE Membrane | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Cleaning way | Changing filter | 11 | One suction arm | 160mm*3m | 12 | Weight (excluding suction arm) | 1205KG | 13 | Dimensions(excluding suction arm) | 5505501165mm | - - - - Company profile
