Active Carbon Filter Solder Fume Extractor For Soldering Iron Laser Marking - China

Soldering iron &laser marking fume extractor with one arm and active carbon filter Working principle The vacuum pressure air flowing the blower generates enters the purifying chamber through the suction arm or pipe.

The dust contained gas is purified in the purifying chamber through the separation of the filter cartridge.

Through different ways of cleaning (manual cleaning or automatic cleaning) make the ash cake of accumulating in the surface of the filter fall into the fume drum.

After cleaning, the clean air through the air duct is exhausted out by blower (exhaust gas containing dust standard 2mg/m) Main features 1 - Multi-position design, air flow Adjustable, flexible suction arms adjust freely.

Application for position of iron welding, soldering oven, wave soldering, reflow oven.

Laser welding, engraving, marking, cutting.

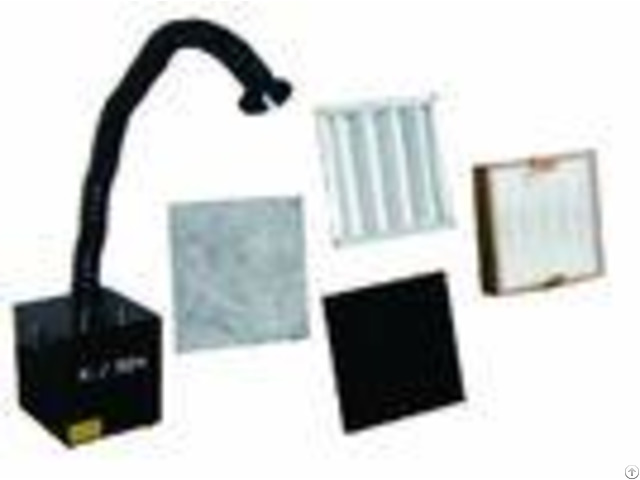

2 - It adopts internal three layers filtering (including activated carbon filters) to ensure the filter more accurate, get rid of smell stronger, extend the service life of filter materials.

Reduce maintenance costs during use.

3 - Built-in way to avoid indoor air filtration cycle air conditioning / heating discharged to outside.

4 - Integrated design, convenient installation, flexible move, no pipes needed.

5 - High-power brushless motor, long life, low noise, a high air flow.

Technical parameters - - - - NO.

| Item | Parameter | 1 | Motor type | Centrifuged fan | 2 | Air flow | 26010m3/h | 3 | Power | 0.20KW | 4 | Voltage & frequency | 220V/50Hz | 5 | Filtering area | 2 | 6 | Filter layer | 3 layers | 7 | Filtering material | Glass fabric, active carbon | 8 | Filtering efficiency | 0.5um, >95% | 9 | Noise | 655dB(A) | 10 | Suction arm | 1 pc 1.2m 75mm | 11 | Suction hood (optional) | 355 mm, Acrylic material | 12 | Weight | 142kg | 13 | Dimension | 308308420 mm | - - - -
