Aluminum Silver Color Led Light Power Supply 100w 12v 8 3a Long Lifespan - China

100w Constant Voltage Led Light Power Supply Signal Output 12V Led Power Supply Features of power supply: Protections: Short circuit / Overload / Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test High efficiency, long life and high reliability Specifications of power supply: - - - - Model | PJ12V100W | output | DC voltage | 12V | Voltage tolerance | 1% | Current range | 0~8.3A | Ripple&noise | 120mvp-p | DC voltage ADJ.

range | 10% | input | Voltage range | 90~132VAC/170~264VAC(sele cted by switch), 235~373VDC | frequency | 47~63HZ | AC current | 1.3A/115VAC, 0.65A/230VAC | efficiency | 82% | Inrush current | Cold start current 18A/115VAC, 36A/230VAC | Leakage current | < 1mA/240VAC | protection | overload | Rated output power115%~150% start over load protection | protection type: hiccup mode, auto-recovery after fault condition is removed | environment | Working temp, humidity | -10~+60, 20%~90%RH | Storagetemp, humidity | -20~+85, 10%~95%RH non-condensing | Withstand vibration | 10~500HZ, 2G 10min/1cycle, period for 60 minutes, each axes | safety | Withstand voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | Isolated resistance | I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC | Fit standard | Safety standard | Fit UL1012 | EMC standard | EN55022, CLASSA | others | Dimension | 129*98*40mm (L*W*H) | Weight/packing | 0.33kg/50pcs/ 18kg | note | 1 - All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

| 2 - Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

| 3 - Tolerance : includes set up tolerance, line regulation and load regulation.

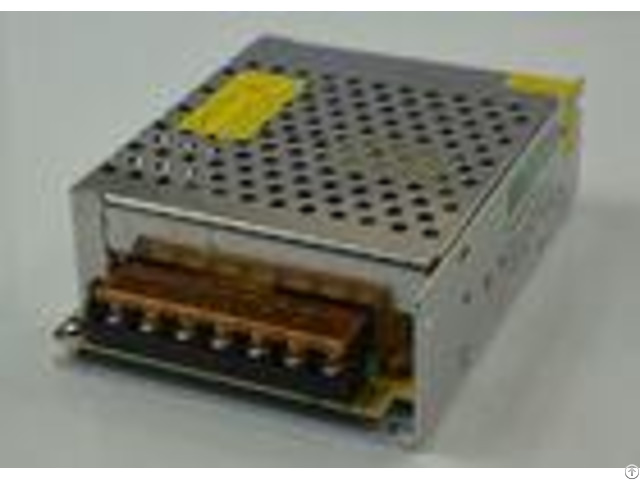

| - - - - Power Supply Photo: How to choose our power supply? 1 - Single output To determine the power after the output voltage is decided.

The power range of our switching power supply is 10w to 1500w, output voltage from 3v to 220v DC.

If the requirement is 24v, 1a, we can choose s-25-24, and within cost range, retain 10%-20% of the power allowance.

2 - Multi -output The multi-output power supply has the main and secondary circuit output.

The character of main circuit output is better than the secondary.

To ensure the load regulation, every circuit has to be with a certain load.

If just using the second circuit, the main circuit has to be matched with corresponding dummy load.

3 - Before placing an order, please kindly confirm us the details below: Input voltage, Output voltage, Output current, Power.

4 - When purchasing the power supply, the customer should know the operation environment, for example, temperature, humidity, altitude, etc.

Questions for our power supply? 1 - When using your power supply, find the shell with voltage, is that normal? A: That is normal.

Its specified in the IEC standard that the leakage current is less than 3.5mA.

Its safe and wont cause any damage to people.

2 - Can use 2-50w power supply as the charging power supply? A: Yes.

But in order to avoid battery feedback, please use a series diode on the output, and pay attention to the diode heat dissipation.

3 - Why the power supply fails to boot correctly? A: This is overload protection taking effect.

In this case, please choose the appropriate power or contact the manufacture factory.
