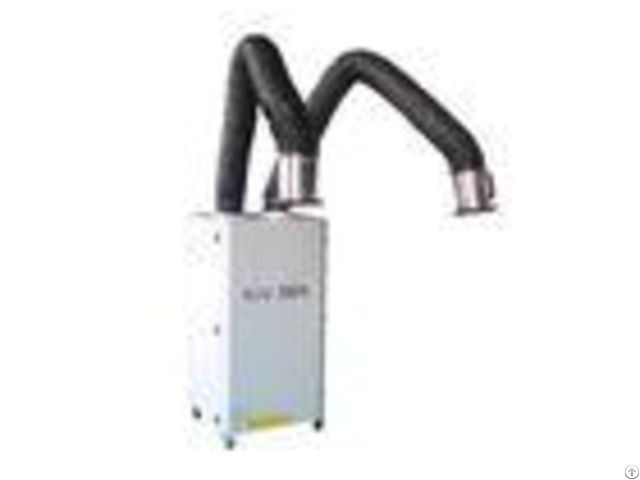

Double Arms Industrial Dust Extractor Mobile Welding Fume Extraction Units - China

Industrial mobile welding fume/dust/smoke collector with double arms Working principle The vacuum pressure air flowing the blower generates enters the purifying chamber through the suction arm or pipe.

The dust contained gas is purified in the purifying chamber through the separation of the filter cartridge.

Through different ways of cleaning (manual cleaning or automatic cleaning) make the ash cake of accumulating in the surface of the filter fall into the fume drum.

After cleaning, the clean air through the air duct is exhausted out by blower Product Introduction 1 - Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake devicefor easy moving and stationing.

2 - It is suitable for the purification of fume and dust generatedin all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

3 - The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.5m.

According to the extractors work intensity and theamount of dusts, the usage life of the filter cartridge is different.

4 - Suction arm can be rotated by 360 and can reach the position flexibly and easily by pulling thehandleon the hood and position in the absence of external force.

Depending on needs 3m, 4mflexible suction arm are available.

Suction arm uses high temperature resistant, flame retardantand wearable composite material, it will not crack after burning through by spark and has a longer usage life.

The diameter of suction arm is 160mm.

5 - The cost is low and easy to operate, economical and low noise.

6 - Applying togas shield welding, argon arc welding, MMA and brazing etc.

Standard Parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 2000100 m3/h | 3 | Motor power | 2.2kW | 4 | Power supply | 380V ~/50Hz | 5 | Filtration area | 30 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | Synthetic wood pulp fiber filter paper | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Ash hopper volume | 7 L | 11 | Two suction arm | 160mm*3m | 12 | Weight (excluding suction arm) | 1355KG | 13 | Dimensions(excluding suction arm) | 6407601320mm | - - - -
