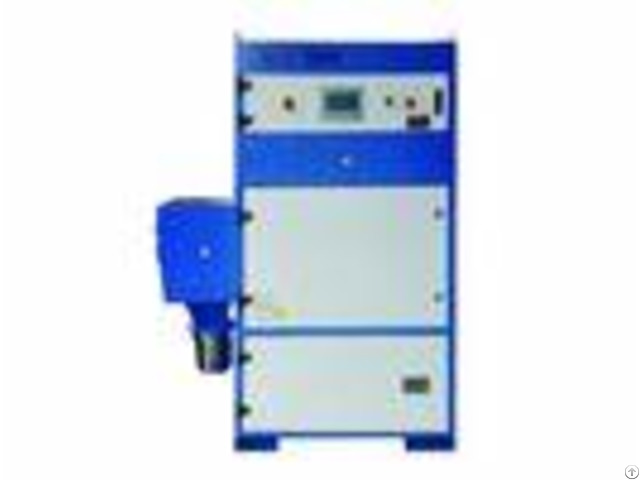

Fiber Cutting Laser Fume Extractor With Preprocessor 3kw Power 4000m3 H Air Flow - China

Laser fiber cutting fume extractor with preprocessor, 3KW 4000m3/h air flow Product introduction The laser fume extractors operation is controlled by PLC control system.

All of operations control and information display are on the control panel with control button and display screen, the operation screen is humanization design and the operating is very convenient.

Our engineers can set the running program according to the requirement of different working conditions, for instance the automatically cleaning times after starting and stopping the equipment.

Setting up the reverse blow cleanings technical parameters according to the on-site air environment, fume & dust characters and compressed air supplying.

The controlling system implements real time monitoring and analyzes on a number of important parameters of the equipment in operation, and show them on the display screen.

It has automatically self-diagnosis function to show the equipments abnormal and error conditions in operation.

These functions can make the equipment in good working condition and extend the usage life of the equipment.

During the fume extractor operates, harmful fumes enter the purification system through the suction pipe.

The filtration material near the air inlet within the purification system is stainless steel mesh sintered with PTFE membrane which is a patented product of our company.

The filter elment of the welding fume extractor is made of imported PTFE membrane filter material of high filtration precision, and the filtration precision reaches 0.1 m.

In accordance with the extractor work intensity and the amount of dust, the usage life of the filter is different.

The corresponding indicator on the control panel will light up to indicate different conditions and a power phase sequence indicator, phase absence and short-circuit protection are set inside.

Its equipped with automatic shutdown mechanism when the temperature is too high (optional).

On the control panel, it includes: - Power switch - Power indicating light - PLC implementation of filter automatically cleaning - Fan rotation direction monitor (Inside the control box) Main features 1 - CE certification is available.

2 - The large filtering area is supplied according to the laser cutting fume feature.

3 - Application for 1500x3000m size table laser cutting fume and dust disposal.

4 - Large air flow, automatically cleaning, maintaining easy, small dimension.

5 - Exellent housing and structure design makes sure the machine is durable.

6 - It is also suitable for plastic material cutting after changing filter material and increasing carbon active filter.

Technical parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 4000100 m3/h | 3 | Motor power | 2x1.5 kW | 4 | Power supply | 3380 or 415V/50Hz | 5 | Filtration area | 40m2 | 6 | Number of cartridge filters | 4 pieces | 7 | Filter medium | PTFE coated filter element | 8 | Filtration efficiency | >99.9% | 9 | Solenoid valve | 4 pieces | 10 | Compressed air | 56 bar | 11 | Ash hopper volume | 15L | 12 | Noise | 755dB(A) | 13 | Weight | 43510kg | 14 | Dimensions(excluding suction arm) | 1100(L)800(W)2000(H)mm | - - - -
