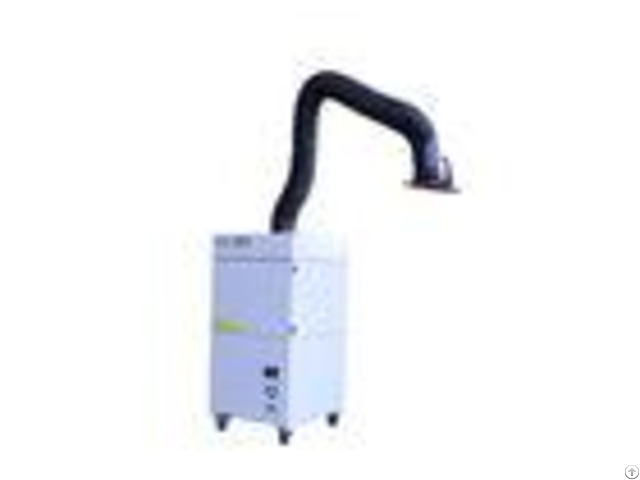

Frame Filter Industrial Fume Extractor Real Anti Temperature Suction Arm - China

Frame filter welding fume extractor with the real anti-temperature suction arm Production introduction 1 - Apply to all kinds of soot purifications caused by welding, grinding, as well as recycling of rare metals, precious materials, etc.

2 - For the potential of fire and molten slag particles, three protective measures are used inside purifier, to make it a longer life, more secure and reliable.

3 - For the KSJ-0.7B model purifier, its electric control is simple, automatically cleaning relying on the internal pressure sensors, and also can by manual.

There are 3 stages filtering layer with the interception net.

It will also increase the active carbon filter layer according to working conditions or clients, the filtering effeciency is very high, the active carbon filtering layer will reduce the peculiar smell in the air.

4 - Power phase sequence instructions, short-circuit protection for lack of phase, with shutdown protection measures when too high temperature.

5 - With large air volume, low noise and better capture effect.

Suction hose uses the real anti-temperature, wear-resistant compounded materials, without crack and damage to sparks, its life shorter than the model of intelligent.

6 - Suction arm can be rotated 360, and reach the point of destination and angle of inhale dust and air bypulling the handle of the hood with the operators will flexibly and easily and position by itself in the absence of external force.

Depending on needs, 2m, 3m or 4m flexible suction arm are optional.

7 - Suction arm uses real temperature-resistant, flame retardant and wear-resistant composite materials, and will not crack after burning through by spark with longer life; the arm diameter is160mm.

8 - The filter elment of the welding fume extractor is made of imported filter material of high filtration precision, and the filtration precision reaches 0.3 m.

In accordance with the extractor work intensity and the amount of dust, the usage life of the filter is different.

On the control panel, it includes: -Fan switch -Pressure difference indicator Technical Parameters - - - - No.

| Item | Parameter | 1 | Fan type | Centrifugal fan | 2 | Treatment of air flow | 130050 m3/h | 3 | Motor power | 1.1 kW | 4 | Power supply | 220V ~/50Hz | 5 | Initial efficiency filter | 1 pc 1 | 6 | Medium efficiency filter | 1 pc 7 | 7 | High efficiency filter | 1 pc 7 | 8 | Total filtration area | 15 m2 | 9 | Filter medium | Synthetic wood pulp fiber filter paper +membrane | 10 | Cleaning method | Discharging the filter to clean | 11 | Noise | 685dB(A) | 12 | Air pressure | 1900 Pa | 13 | One suction arm | 160mm*2m | 14 | Weight (excluding suction arm) | 1385KG | 15 | Dimensions(excluding suction arm) | 6607501200mm | - - - - Frame filter with intecept spark mesh
