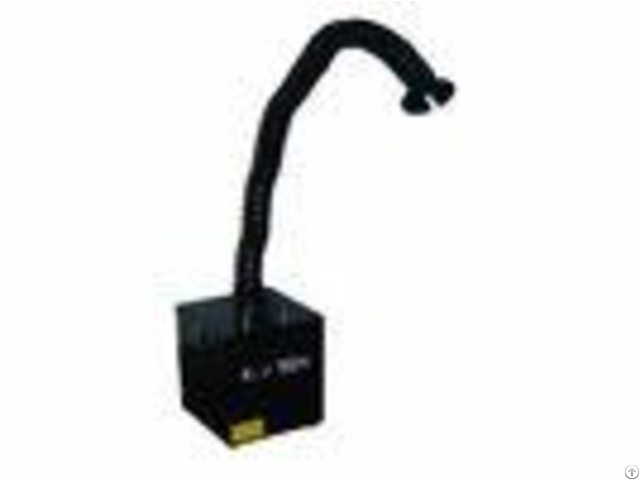

Laser Engraving Marking Solder Fume Extractor With Active Carbon Filtera - China
price: check with company for price
Laser engraving&marking fume collector with active carbon filter which gets rid of smell Working principle When dust-laden air sucked into the machine through suction arm, big particles are filtered out by the first layer of fold wave filter, preventing particles hitting & damaging high efficiency filter cartridge; then it continues to pass through the high efficiency filter cartridge under the suction force of fan and particles are separated; at last impurity are absorbed on activated carbon.
Filtered air can be discharged directly to the workshop through the vent.
Main features 1 - Built-in way to avoid indoor air filtration cycle air conditioning / heating discharged to outside.
2 - Integrated design, convenient installation, flexible move, no pipes needed.
3 - High-power brushless motor, long life, low noise, a high air flow.
4 - Multi-position design, air flow Adjustable, flexible suction arms adjust freely.
Application for position of iron welding, soldering oven, wave soldering, reflow oven.
Laser welding, engraving, marking, cutting.
5 - There are three layers filters including the active carbon filter layer inside of the soldering fume extractor to ensure a higher filtering efficiency, powerful deodorizing, longevity of filter materials and lower maintenance cost.
It has multi-site design and air flow is adjustable.
The flexible suction arm can be adjusted freely and reach any position the operator wants it to reach.
Technical parameters - - - - NO.
| Item | Parameter | 1 | Motor type | Centrifuged fan | 2 | Air flow | 26010m3/h | 3 | Power | 0.20KW | 4 | Voltage & frequency | 220V/50Hz | 5 | Filtering area | 2 | 6 | Filter layer | 3 layers | 7 | Filtering material | Glass fabric, active carbon | 8 | Filtering efficiency | 0.5um, >95% | 9 | Noise | 655dB(A) | 10 | Suction arm | 1 pc 1.2m 75mm | 11 | Suction hood (optional) | 355 mm, Acrylic material | 12 | Weight | 142kg | 13 | Dimension | 308308420 mm | - - - -
