Metal Grinding Polishing Downdraft Welding Table 380v 415v 50 Hz Input Voltage - China

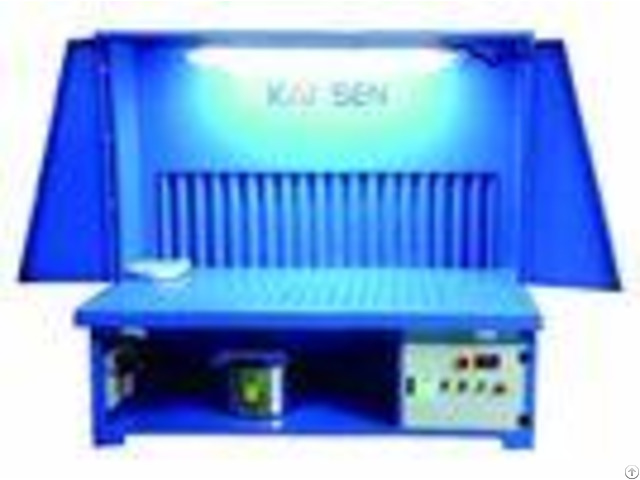

Metal grinding & polishing dust collector workbench Product introduction 1 - The grinding table with downdraft and rear wall spark and air fume extraction is a clean and safe solution for industrial use.

2 - The grinding process of the workpiece is usually essential in the welding shop.

For the grinding of workpiecebefore and after welding work, this product uses the international advanced filtering technology; filtrationefficiency reaches 99.9% for welding, cutting and grinding, ensuring high air flow at the same time.

3 - The grinding table is designed completely with user-friendly style, the design work and preparation of other accessories can be implemented based on actual customer needs, the side plate of the table is designed to open type and closed according to the characteristics of the workpiece, and it can also be designed to be lower ventilation or side ventilation according to the actual conditions.

Kaisen has four types of grinding stations totally.

4 - It also needs a grinding dust collector workbench with explosion-proof device for aluminum or alloy grinding process, we can provide the product them.

And we have gained first explosion-proof inspection ertification in China.

Main features 1 - CE and explosion-proof certification is available.

2 - Worksize is 1890*855*650mm (LXWXH), the table is available in different sizes 3 - Middle air flow, semi-automatically cleaning, maintaining easy.

4 - Safe working due to robust material support 5 - Side walls can be folded away so also suitable for larger workpieces 6 - Comfortable to work with thanks to the ergonomically adapted sheet steel construction Application: Industrial grinding of machined workpieces Technical parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 5800100 m3/h | 3 | Motor power | 5.5 kW | 4 | Power supply | 3380 or 415V/50Hz | 5 | Filtration area | 45m2 | 6 | Number of cartridge filters | 3 pieces | 7 | Filter medium | Nanometer fiber element | 8 | Filtration efficiency | >99.9% | 9 | Solenoid valve3 | pieces | 10 | Compressed air | 56 bar | 11 | Ash hopper volume | 50L | 12 | Noise | 725dB(A) | 13 | Weight | 91515kg | 14 | Dimensions | 1950(L)1535(W)1845(H)mm | - - - -
