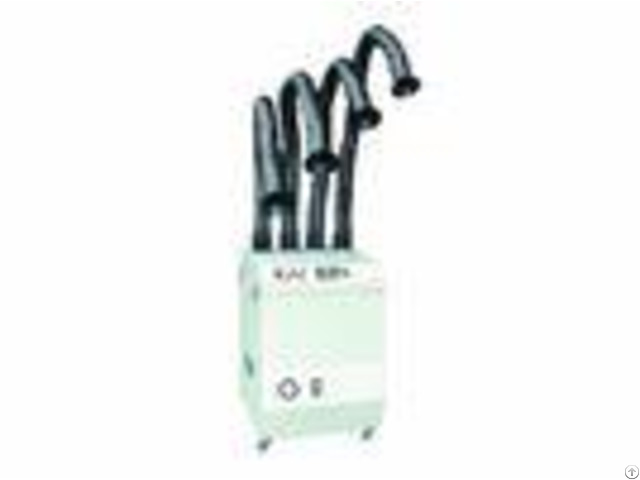

Portable Solder Fume Extractor 220v 50hz Voltage 540 500 780mm Dimension - China
price: check with company for price
Laser marking&soldering andlaser engraving fume extractor/dust collector Main features 1 - Integrated design, convenient installation, flexible move, no pipes needed.
2 - High-power brushless motor, long life, low noise, a high air flow.
3 - It adopts internal three layers filtering (including activated carbon filters) to ensure the filter more accurate, get rid of smell stronger, extend the service life of filter materials.
Reduce maintenance costs during use.
4 - Built-in way to avoid indoor air filtration cycle air conditioning / heating discharged to outside.
5 - Multi-position design, air flow Adjustable, flexible suction arms adjust freely.
Application for position of iron welding, soldering oven, wave soldering, reflow oven.
Laser welding, engraving, marking, cutting.
6 - CE certification is approvable.
Technical parameters - - - - NO.
| Item | Parameter | 1 | Motor type | Centrifuged fan | 2 | Air flow | 85020m3/h | 3 | Power | 0.26KW | 4 | Voltage & frequency | 220V/50Hz | 5 | Filtering area | 4 | 6 | Filter layer | 3 layers | 7 | Filtering material | Glass fabric, active carbon | 8 | Filtering efficiency | 0.5um, >95% | 9 | Noise | 655dB(A) | 10 | Suction arm | 4 pcs 1.4m 75mm | 11 | Suction hood (optional) | 355 mm, Acrylic material | 12 | Weight | 482kg | 13 | Dimension | 540500780 mm | - - - -
Company Contact:
- Phone: 86-21-57783800
- Address: No. 6, Lane 111, Shihui Road, Songjiang District, Shanghai city,China 201600., Shanghai , Shanghai , China
- Email:
Published date: March 27, 2018
- Business Description: Being market-oriented and technology- leaded, with abundant capital and continuous innovation, we strictly abide by the tenet "Quality First, Customer Foremost", providing a clean and comfortable working environment for workers in a variety of industries.
