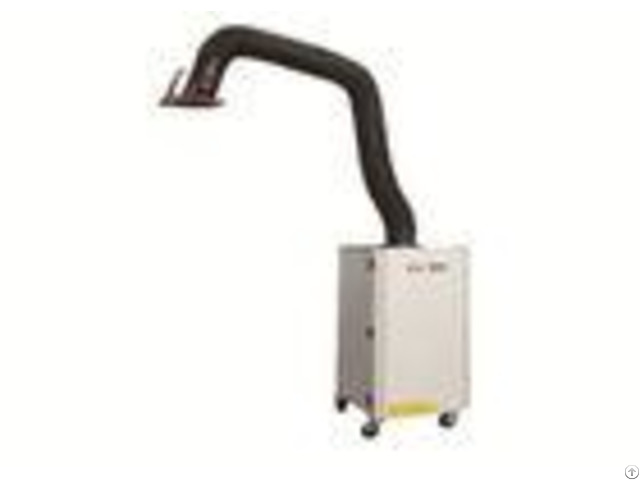

Portable Welding Fume Extractor Ce Certification Low Power Consumption - China

Mobile single arm welding smoke eliminator with CE certification Working principle Dust laden fume is sucked into the machine through suction hood and suction pipe, hitting on the deflector at the extractors entrance, slowed and diverted, forming a downward moving air stream, big particles fall into dust collector, which avoid hitting and damaging the filter cartridge, dust filtered out on the filter cartridges layer surface under the fans suction force, filtered clean air is directly discharged through the vent into workshop.

After each periods use, the filter cartridge should be taken out and use compressed air to blow it from the interior.

Product Introduction 1 - It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

2 - Suction arm can be rotated 360 horizontally, according to actual working condition, suction volume can be adjusted by adjusting volume valve in suction hood.

3 - Fume cleaning: Cleaning use compressed air(0.50.6MPa) to reverse blowing, external compressed air PU hose 10mm.

If need dust removing, just open the valve of the top of equipment, lasting time at 3S8S, more or less.

4 - Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake devicefor easy moving and stationing.

5 - The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.5m.

According to the extractors work intensity and the amount of dusts, the usage life of the filter cartridge is different.

Main features: 1 - CE certification and EMC test report is approvable.

2 - Specically suiting for TIG, MIG etc.

small fume occasions.

3 - Small dimension, easy to move, low power and energy consumption, low price.

4 - It's able to change PTFE membrane filter cartridge to get better filtering precision.

Standard Parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1000100 m3/h | 3 | Motor power | 0.75kW | 4 | Power supply | 220-240V ~/50Hz | 5 | Filtration area | 20 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | Synthetic wood pulp fiber filter paper | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Ash hopper volume | 2 L | 11 | One suction arm | 160mm*2m | 12 | Weight (excluding suction arm) | 985KG | 13 | Dimensions(excluding suction arm) | 510610990mm | - - - - Switzerland switch
