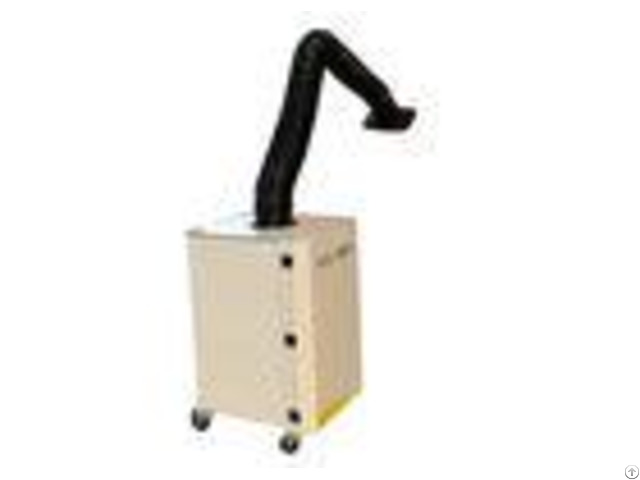

Professional Portable Welding Smoke Eater 750w Power Mobile Dust Extraction Units - China

price: check with company for price

2m suction arm welding fume extraction with nano meter material filter of high efficiency Product Introduction 1 - It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

2 - Suction arm can be rotated by 360 and can reach the position flexibly and easily by pulling the handle on the hood and position in the absence of external force.

Depending on needs, 2m, 3m flexible suction arm are available.

Suction arm uses high temperature resistant, flame retardant and wearable composite material, it will not crack after burning through by spark and has a longer usage life.

The diameter of suction arm is 160mm.

3 - Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake devicefor easy moving and stationing.

4 - The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly.

Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPAs filtration efficiency can reach 99.9%.

5 - The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.5m.

According to the extractors work intensity and the amount of dusts, the usage life of the filter cartridge is different.

Main features: 1 - CE certification and EMC test report is approvable.

2 - Specically suiting for TIG, MIG etc.

small fume volume working conditions.

3 - Small dimension, easy to move, low power and energy consumption, low price.

4 - It's able to change PTFE membrane filter cartridge to get better filtering precision.

5 - Gas-pressue meter from USA, Switzerland switch ( Water proof, dust proof and short-circuit protection) Standard Parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1000100 m3/h | 3 | Motor power | 0.75kW | 4 | Power supply | 220-240V ~/50Hz | 5 | Filtration area | 20 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | Synthetic wood pulp fiber filter paper | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Ash hopper volume | 2 L | 11 | One suction arm | 160mm*2m | 12 | Weight (excluding suction arm) | 985KG | 13 | Dimensions(excluding suction arm) | 510610990mm | - - - -
