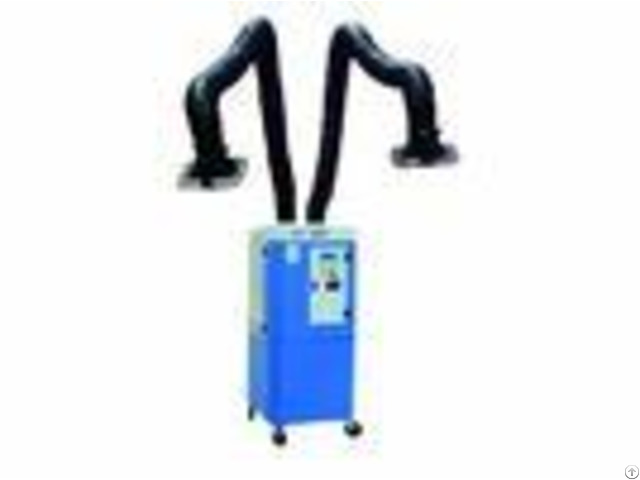

Self Cleaning Mobile Fume Extractor With 2 Pcs 3m Arms Plc Smart Control - China

Self-cleaning mobile welding fume extractor with 2 pcs 3m arms, PLC Smart control, Text interface Working principle The vacuum pressure air flowing the blower generates enters the purifying chamber through the suction arm or pipe.

The dust contained gas is purified in the purifying chamber through the separation of the filter cartridge.

Through different ways of cleaning (manual cleaning or automatic cleaning) make the ash cake of accumulating in the surface of the filter fall into the fume drum.

After cleaning, the clean air through the air duct is exhausted out by blower.

Productintroduction 1 - Smart mobile welding fume extractor has two directional and two rotary polyurethane casters with brake device for easy moving and stationing.

It is suitable for the purification of fume and dust generated in allkinds of welding, grinding and other places as well as for collecting rare metal particles and preciousmaterial.

2 - Suction arm can be rotated by 360 and can reach the position flexibly and easily by pulling the handleon the hood and position in the absence of external force.

Depending on needs, 2m, 3m or 4m flexible suction armsare available.

Suction arm uses high temperature resistant, flame retardant and wearablecomposite material, it will not crack after burning through by spark and has a longer usage life.

Thediameter of suction arm is 160mm.

3 - The fume comes from the processing will be sucked into the extractor through the hood, first the fumepasses the 1st layer spark intercept steel mesh which will separate and intercept the spark initially.

Andthe fume enters into second layer namely filter preventer plate to avoid residual sparks enter into main filter layer directly through ramifying the fume.

At last the fume enters the third layer namely the main filtercartridge for ultimate purification.

The filtration efficiency can reach 99.9%.

4 - As the filtering precision of the main filter cartridge reach the indoor emission standards, after filtration clean air can be directly discharged indoor through the air vent in the back of the extractor.

The filterinside makes use of full automatically rotating blowing (pulse nuzzle cleaning) system for cleaning ashwhile connecting the compressed air source, it makes the surface of filter more clean and tidy.

So the dust collector is always keeping the constant air flow.

5 - The filter elment of the welding fume extractor is made of imported PTFE membrane filter material of highfiltration precision, and the filtration precision reaches 0.1 m.

In accordance with the extractor workintensity and the amount of dust, the usage life of the filter is different.

The corresponding indicator on thecontrol panel will light up to indicate different conditions and a power phase sequence indicator, phaseabsence and short-circuit protection are set inside.

Its equipped with automatic shutdown mechanism when the temperature is too high (optional).

Main features 1 - CE certification and EMC test report is approvable.

2 - Application for kinds of welding fume and others dust.

For example, GSAW (CO2), MMA, TIG, MIG, Laserwelding, floating dustand so on.

3 - Large air flow, automatically cleaning, maintaining easy, two units arms to be more competitive price.

4 - Good parts make sure the qualilty, for example, Schneider, CHNT electrics, Siemens PLC and montoringscreen, USA gas-pressure switch, Japan Toray filtering material, AKZO Nobel spraying powder etc.

5 - Exellent housing and structure design makes sure the machine is durable.

Technicalparameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 2600100 m3/h | 3 | Motor power | 3 kW | 4 | Power supply | 3380 or 415V/50Hz | 5 | Filtration area | 20m2 | 6 | Number of cartridge filters | 2 pieces | 7 | Filter medium | PTFE coated filter element | 8 | Filtration efficiency | >99.9% | 9 | Solenoid valve | 2 pieces | 10 | Compressed air | 56 bar | 11 | Ash hopper volume | 15L | 12 | Noise | 745dB(A) | 13 | Weight | 26610kg | 14 | Dimensions(excluding suction arm) | 800(L)800(W)1633(H)mm | - - - - Filter automatically cleaning principle
