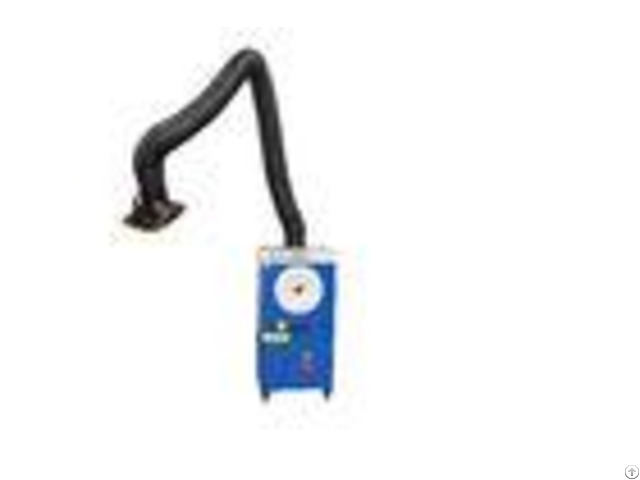

Transportable Industrial Fume Extractor High Temperature Resistant Arm - China

Industrial transportable welding fogtreater for large fume occasion Working Principle The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer spark intercept steel mesh which will separate and intercept the spark initially.

And the fume enters into second layer namely filter preventer plate to avoid residual sparks enter into main filter layer directly through ramifying the fume.

At last the fume enters the third layer namely the main filter cartridge for ultimate purification.

As the filtering precision of the main filter cartridge reach the indoor emission standards, after filtration clean air can be directly discharged indoor through the air vent in the bottom of the extractor.

Product introduction 1 - Suction arm uses high temperature resistant, flame retardantand wearable composite material, it will not crack after burning through by spark and has a longerusage life.

The diameter of suction arm is 160mm.

2 - It is suitable for the purification of fumje and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

And HEPAs filtration efficiency can reach 99.9%.

3 - The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.1m.

According to the extractors work intensity and theamount of dusts, the usage life of the filter cartridge is different.

Main feature 1 - The machine adopts PTFE polyester filter, the service life is long.

2 - Internal spark arrestor: Functions as a pre-filter for larger sized particulate.

3 - One flexible suction arm can rotate 360and the freedom to stay anywhere.

4 - The filtration efficiency can reach 99.9%, the emission standard is 1.2mg/m Technical parameters - - - - No.

| Item | Parameter | 1 | Air volume | 1800100 m3/h | 2 | Motor power | 1.5 kW | 3 | Power supply | 3x380V/50Hz | 4 | Filtration area | 8 m2 | 5 | The maximum pressure | 2800 Pa | 6 | Filter medium | PTFE membrane | 7 | Cleaning way | Changing cleaning | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Weight | 1205kg | 11 | Dimensions(excluding suction arm) | 550(L)550(W)1165(H)mm | 12 | One suction arm | 160mm*2m | 13 | Filtration precision | 0.1 m | - - - - Company profile Shanghai Kaisen Environmental Technology Co., Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors.

Since 2007 we had been engaged in dust collectors for ten years.

Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.

Manufacturing with many imported parts and advanced technology from abroad, we have multi-series, diversified fume & dust collectors and integrated purifying system.

We are also able to specially develop product for plant according to its specific conditions, providing quality product and perfect service.

Our company has rich technical force, advanced equipment, excellent processing craftsmanship, complete testing method and sound quality control system.

And our company is the first enterprise which has passed the authority certification of Shanghai Environmental Products Quality Supervision & Inspection Center, with the product s performance index reached leading international level.

We can specifically solve various industrial plant pollution problems, and provide special product development and application services, quality products and perfect services for clients.
