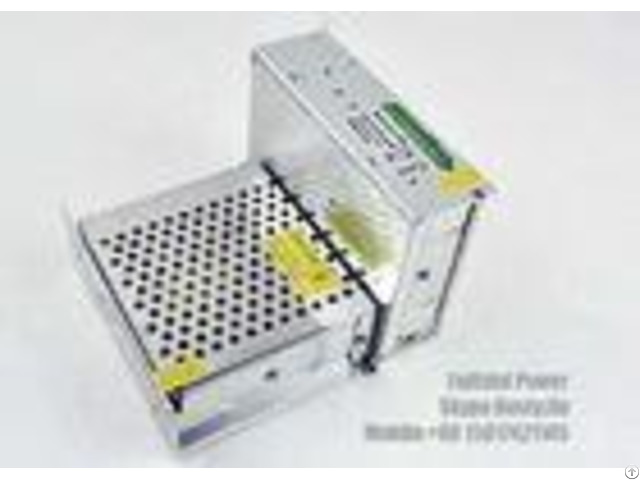

Universal Ac Input Range Led Switching Power Supply 120w For Wall Washer - China

120W Constant Voltage LED Switching Power Supply 5A 10A LED Power Supply 12V 24V Switch Power Supply120W Constant Voltage LED Switching Power Supply 5A 10A

AC input: 100vac~264vac

DC output: 5v 12v 15v 24v 27v 48v

Efficency: higher than 85%

Product Feature

1 - Universal AC input Range

2 - Protections: short circuit, over load, over temp, over voltage

3 - Build-in EMI filter with tiny ripple

4 - 100%full load 8 hours burn-in test 5 - Small volume high-efficiency

6 - Conform to EN60950 GB4943 UL60950 safety standards

7 - Conform to GB9254, EN55022, EMC standards Data Sheet of120W Constant Voltage LED Switching Power Supply

- - - -

AC input voltage range | 90~132VAC 170~264VAC | Input current | 2.8A/115V, 1.4A/230V | Input frequency | 47~63Hz | Inrush current | cold start, 25A/115V, 50A/230V | Input leakage current | < 3.5mA/240VAC | Output voltage adjustable range | 10%rated output voltage | Output overload protection | 105-~150%, hiccup mode, auto recovery | Output over voltage protection | 115~135%, cut-off the output, auto recovery | output over temp protection | rectifiter105C cut off the out put, auto-recovery | Withstand voltage | I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min | Operating temperature | -20C ~+60C | Operating humidity | 20%~90% | packing | 50pcs/17.9kg | size | 129*98*40 mm | weight | 0.33kg/pc | - - - - Applications

1 - Lanscape Lighting, Home Lighting, Hotel Lighting, 2 - Office lighting, artwork lighting, display case

3 - Commercial lighting: wall washer, digital tube point sources, Light Box, led ceiling light, down light, panel light, spotlight, strip light.

4 - Other RGB lighting.

5 - cctv system and automation system.
