Fabric Tensile Strength Tester Tf001 - China

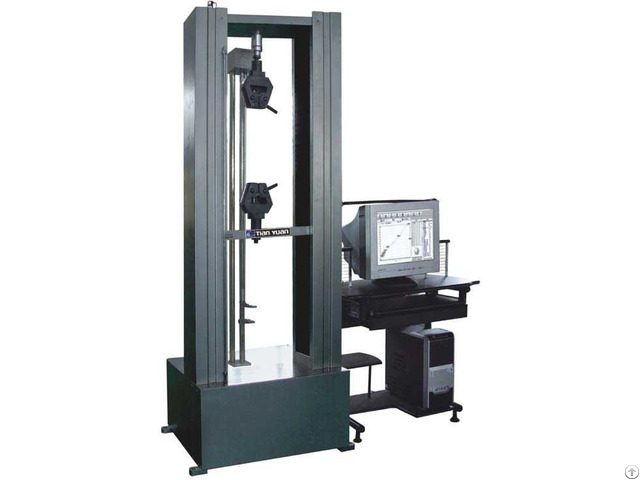

Fabric Tensile Strength Tester TF001 Fabric Tensile Strength Tester TF001, also known as Tensile Strength Tester TF001, universal testing machine (UTM), universal tensile testing machine, etc.

The Fabric Tensile Strength Tester TF001 is used to test the performance of various materials under tensile, peel, compression, bending, shear, tear, etc.

It is suitable for textiles, rubber, laminated films, packaging materials, pipes, woven tapes, leather, shoe materials, composite materials, paper, etc.

With different fixtures, the Fabric Tensile Strength Tester can be used to test different materials and kinds of tests.

QINSUN is a well-known tensile testing machine manufacturer in the industry and currently sells its products to more than 60 countries and regions worldwide.

The Specification of Fabric Tensile Strength Tester TF001 Test capacity: 250kg, 500kg Test level: class 1 Max travel: 800 mm (without fixture) Travel accuracy: ≤1% Traverse speed: 1mm/min ~ 500mm/min Speed accuracy: ≤1% Test force range: 0.2%~100%FS Force accuracy: ≤1% Power：220 V 50Hz 3A 400W 110 V 60Hz 5A 400W Weight： Net weight: 85kg Packed weight: 140kg Dimensions: Machine: 680x500x1450 mm Packed: 780x600x1590 mm Standard fixture and corresponding standards： Manual stretching fixture should be equipped with: 25×25, 25×50, 25×75 clips ISO 9073-3 ISO 13934-1 ISO 13934-2 ISO 13935-1 ISO 13935-2 ASTM D5034 ASTM D5035 Optional fixture and standards: The Pneumatic tensioning fixture & footswitch are equipped with：25×25, 25×50, 25×75 clips Optional fixture and corresponding standards： U-shaped Fixture ASTM D4964 Yarn Fixture I SO2062 Bursting Fixture ASTM D6797 FZ/T 01030 GB/T 19976 Leather Tearing Fixture ISO 3377-2 Standards of the optional manual tension fixture ISO 9073-4 ( require 25x100mm clips) ISO 3377-1 ISO 13936-1 ISO 13936-2 ISO 13937-2 ISO 13937-3 ISO 13937-4 ISO 20932-1 (need to match the linear fixture which needs to be changed by your choice about the type of fixtures) ISO 4674-1 GB/T 3917.3 GB/T 3917.5 GB/T 3923.1 Computer Configuration of Fabric Tensile Strength Tester (Optional) CPU for the Intel Celeron (Celeron) 2GHz or more CPU Memory at least 512MB, recommended more than 1GB Hard disk space above 2GB Display resolution of 1024 × 768 or more.

Printer compatible with the operating system (if output reports are required) The applicable operating system for Microsoft’s Windows XP, Windows 7, Windows 8, Windows 10 If you need to output the report in Word format, you must install Microsoft’s Microsoft Word 2003, 2007, and 2010 versions of the software.

ps: (WLJCDM809)
