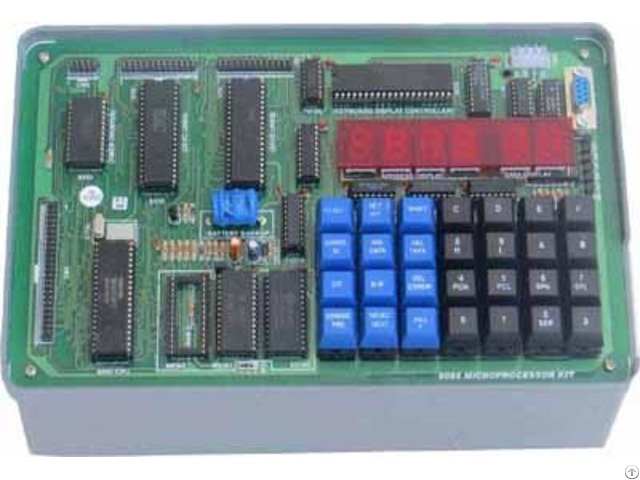

Microprocessor Trainer Kit - India

Specifications

- Based on 8085 CPU operating at 6.144 Mhz.

- 8K bytes of Powerful Monitor Program using 27512 EPROM 8K bytes of RAM using 6264 with Battery Backup using NICD Battery.

- On-board one memory expansion up to 56KB.

- Three Channel Timer/Counter using 8253 brought out at 10 Pins FRC Connector.

- 24 I/O lines provided through 8255 brought out at 26 Pins FRC Connector to interface with IC-XX Series.

- 22 I/O lines provided through 8155 brought out at 26 Pins FRC Connector .

- RS-232C interface through SID/SOD lines

- Two mode of commands:

- Hex Key pad Mode

- Serial Mode

- Six Digit Seven Segment Display using 8279.

- 28Key’s Hex Keypad using 8279 Keyboard Display Controller.

- Powerful Commands like Examine/Edit Memory, Examine/Edit Register, Single stepping, Execution, Block Move, Insert Data, Delete

Data can be used through Hex keyboard or PC serial mode.

- Facility for Downloading/Uploading files from/to PC.

- All address, data & control lines are available on KXT Bus 50 pin FRC Connector to interface with SC-XX Series.

- All ICS are mounted on IC Sockets.

- Bare board Tested Glass Epoxy SMOBC PCB is used.

- In-Built Power Supply of +5V/1.5A, ±12V/250mA

- Attractive Wooden enclosures of Light weight Australian Pine Wood.

- User's Manual with sample programs
