About The Product

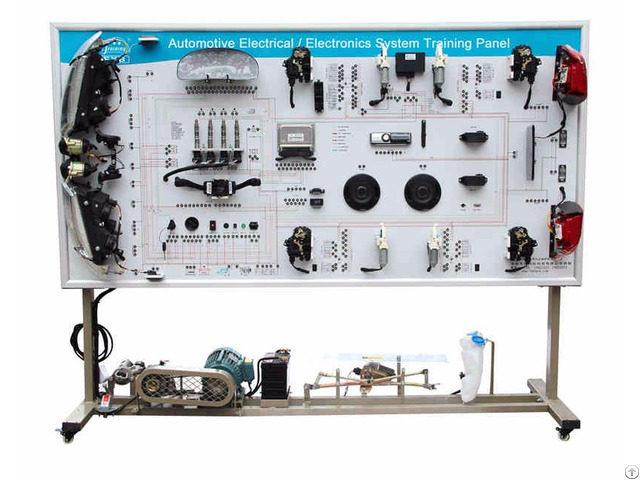

The device is designed based on the electric equipment system of the finished Jetta 1.6 to holistically demonstrate structures and operation of the meter, lighting, wiper, horn, ignition, electric window, electric door lock, sound, startup, and charging systems.

It applies to the teaching of automobile electric equipment theories and maintenance practicing in secondary and senior vocational skill schools, normal education and training institutions.

ii.

Features

1 - A real and operable electric equipment system is used to illustrate the structure of the system.

2 - After the electric equipment system is powered on, switches and buttons of various electric equipment can be operated to demonstrate operation of the meter, lighting, wiper, horn, ignition, electric window, electric door lock, sound, startup, and charging systems.

3 - The training panel is made of advanced aluminum-plastic plate with characteristics of not less than 4mm thick, corrosion resistance, impact resistance, pollution resistance, fireproof, and moistureproof.

Its surface are processed by special craft and spraying primer.

Never fade color circuit diagram and working principal diagram are painted on the board whose surface coating with varnish.

The trainees can learn and analyze the working principle of the control system by referencing the diagram and the real object.

4 - The training panel is installed with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components of the electric equipment system of the finished automobile.

5 - The training panel is installed with a diagnosis socket , which can connect to automobile decoder to read fault codes reads fault codes, clears fault codes, and reads data stream from the engineer control unit (ECU).

6 - The training panel's base frame is made of steel and the surface is paint-coated.

Self-retention wheels are installed.

7 - Equipped with intelligent fault setting and appraisal system, include fault setting, troubleshooting and assessment functions etc.

iii.

Basic Parameter

1 - Size: 2400mm × 700mm × 1900mm (length x width x height)

2 - Driving power supply: three phase four wire (three phase five wire380 ± 10% V 50 Hz)

3 - Operating voltage: 12V DC

4 - Operating temperature: -40℃ to +50℃

5 - Three-phase asynchronous motor

◆ Model: YT 100L1-4

◆ Voltage: AC 220V/380V

◆ Power: 2.2 KW

◆ Rotation speed: 1420 r/min
