Gasoline Engine W Automatic Transmission Training Bench - China

i.

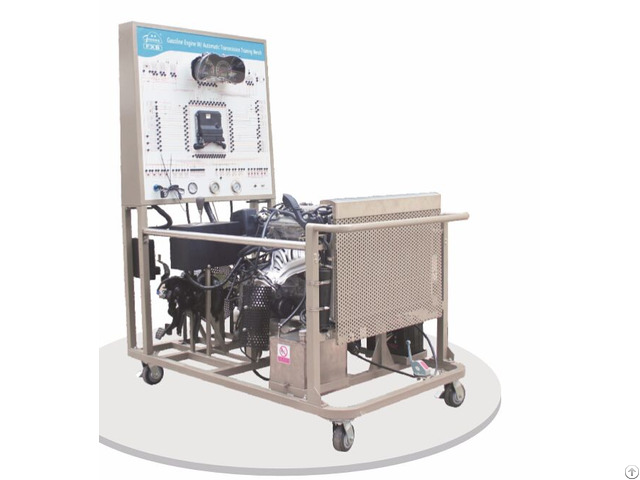

About The Product The device is designed based on the Volkswagen Passet 1.8T electronically-controlled gasoline engine and automatic transmission to simulate engine startup, speedup, slowdown and other actions and to illustrate the position, start up in neutral, drive shift and reverse gear and conduct stall tests, so as to illustrate the structures and working principles of electronically-controlled gasoline engines and automatic transmission.

The device applies to automobile engine, automatic transmission and maintenance training courses of secondary and senior vocational schools, ordinary education and training institutions.

ii.

Features 1 - Real and operable electronically-controlled gasoline engines and automatic transmission to illustrate the structures and working processes 2 - The training bench is made of advanced aluminum-plastic plate with characteristics of not less than 4mm thick, corrosion resistance, impact resistance, pollution resistance, fireproof, and moistureproof.

Its surface are processed by special craft and spraying primer.

Never fade color circuit diagram and working principal diagram are painted on the board whose surface coating with varnish.

The trainees can learn and analyze the working principle of the control system by referencing the diagram and the real object.

3 - The training bench is installed with dashboard, fuel meter, and vacuum pressure meter to illustrate changes of parameters including the engine speed, driving speed, automatic transmission's gear position, injection pressure and intake manifold pressure.

4 - Detection terminals are installed on the training bench.

On the bench, operators can detect various detectors, executors, electrical signals of engine control unit pins, such as resistance, voltage, current, frequency, and waveform signals.

5 - The practical training bench is installed with diagnosis socket, which can connect to automobile decoder to read fault codes, clears fault codes, and reads data stream from the engine electrical control system.

6 - A throttle controller is installed on the bench.

7 - The training bench is installed with automatic transmission output shaft fixtures to conduct stall tests on automatic transmission and check power parameters of the engine and transmission.

8 - A master power switch, water tank protector, output shaft protector, among other protection devices are installed on the training bench 9 - The ptraining bench base frame is made in steel and the surface is paint-coated.

Self-retention wheels are installed to ensure that the bench is flexible, reliable and endurable.

10 - Equipped with intelligent fault setting and appraisal system, include fault setting, troubleshooting and assessment functions etc.

iii.

Basic Parameter 1 - Size: 1600mm x 1000mm x 1800mm (length x width x height) 2 - Operating power supply: 12V DC 3 - Fuel No: Engine mode 4 - Fuel tank size: 10L 5 - Operating temperature: -40℃ to +50℃
