12dc Thruhole Hi Sens Signal Relay G5v 2 H1 Dc12 - India
price: 1.00 Dollar US$

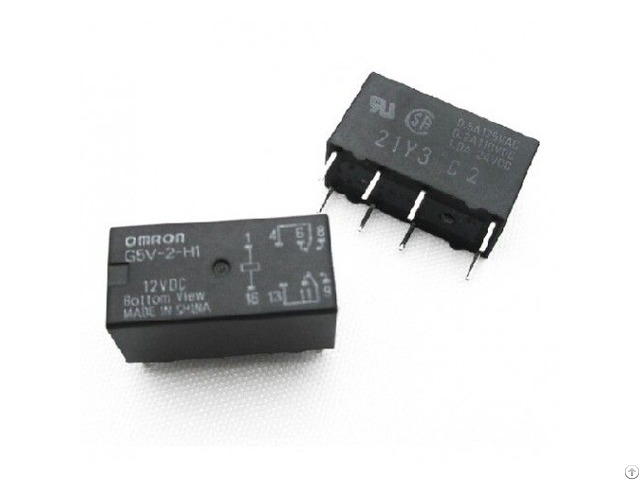

1A DPDT 12DC PCB ThruHole Hi-Sens signal Relay - G5V-2-H1 DC12
Features:
1 - Miniature Relay for Signal Circuits.
2 - Wide switching power of 10 µA to 2 A.
3 - High dielectric strength coil-contacts: 1, 000 VAC;
open contacts: 750 VAC
4 - Ag + Au clad bifurcated crossbar contacts and
fully sealed for high contact reliability.
5 - New 150-mW relays with high-sensitivity.
Application:
1 - Low signal PCB Relay used for Home Appliances .
2 - DPDT Power relay used for telecom manufacture.
3 - PCB Power relay used for setup box manufacture.
DESCRIPTION: -
Manufacturer: Omron
Product Category: Low Signal Relays - PCB
RoHS: RoHS Compliant Compliant
Brand: Omron Electronics
Product: Low Profile Relays
Type: Miniature
Contact Form: DPDT (2 Form C)
Contact Current Rating: 2 A
Coil Voltage: 12 V
Maximum Switching Current: 2 A
Coil Current: 12.5 mA
Coil Type: Non-Latching
Power Consumption: 150 mW
Contact Rating: 0.5 A at 125 VAC, 2 A at 30 VDC
Contact Termination: Solder Pin
Mounting Style: Through Hole
Series: G5V-2
Factory Pack Quantity: 25
POPULAR PRODUCTS: -
Dual Coil Latching 3 VDC Low Signal Relays - PCB, Latching Military/Aerospace Relays Low Signal Relays - PCB, Latching DPDT (2 Form C) Communications Relays Low Signal Relays - PCB, 4.5 VDC 7.8 mA Low Signal Relays - PCB, Non-Latching 12 VDC 500 mA Low Signal Relays - PCB, Dual Coil Latching 9 VDC DPDT (2 Form C) 1 A 70 mW Low Signal Relays - PCB
Company Contact:
- Posted By: e control devices
- Phone: 9810618342
- Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India
- Email:
Published date: December 9, 2016
