12vdc Power Relays Jw1fsn Dc12v - India

price: check with company for price

12vdc Power Relays Jw1fsn Dc12v

Products Photos Catalog 12vdc Power Relays Photos Catalog

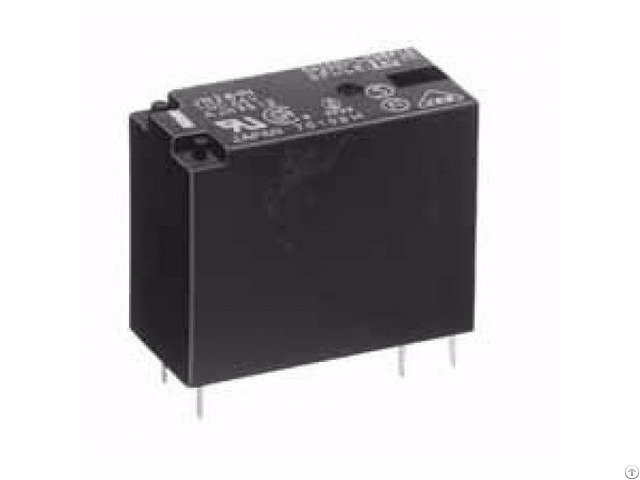

10A 12VDC SPDT SEALED PCB Power Relays - JW1FSN-DC12V

FEATURES: -

• Miniature package with universal terminal footprint

• High dielectric withstanding for transient protection: 10, 000 V surge in μs between coil and contact

• Sealed construction

• Class B coil insulation types available

• TV rated (TV-5) types available (only for 1 Form A type)

• VDE, TÜV, SEMKO, SEV, FIMKO, TV-5 also approved

• Sockets are available.

APPLICATIONS: -

1 - Home appliances

2 - Office machines

3 - Industrial equipment

DESCRIPTION: -

Manufacturer: Panasonic

Product Category: General Purpose Relays

RoHS: RoHS Compliant By Exemption Compliant

Brand: Panasonic Industrial Devices

Contact Termination: Solder Pin

Mounting Style: Through Hole

Contact Form: SPDT (1 Form C)

Contact Current Rating: 10 A

Switching Voltage: 250 VAC, 30 VDC

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Voltage: 12 V

Coil Resistance: 270 Ohms

Coil Current: 44 mA

Contact Material: Silver Tin Oxide

Packaging: Bulk

Power Consumption: 530 mW

Factory Pack Quantity: 100

POPULAR PRODUCTS: -Omron G2RL Relay, Omron G5V relay, Omron G5LE Relay, Omron G5V-2 Relays, Power latch relay, Power magnetic relay, power monitering relay, power off relay, power on relay, Power pcb relay supplier, pcb cube relay, general purpose relay, Electronic pcb relay, electrical relays, power relay 16a, power relay 10a, 5vdc power relay, 5 pin power relay, 8 pin power relay etc.


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email

Published date: November 9, 2016 - Modified date: November 9, 2016

  • Business Description: A business description is just one key element of a full business plan.

    This section commonly comes directly after the executive summary in your business plan outline.

    The length of a common business description ranges from a few paragraphs to several pages.
