140kv Generator High Resolution X Ray Cargo Scanner Checking Luggage Machine Th5030 - China

140kv Generator High Resolution X-ray Cargo Scanner Checking Luggage Machine Th5030 TH5030 Dual Energy X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination.

TH5030 use same operating system as AT5030A, but its dual energy give high definition scanned images, showing real organic and inorganic objects.

It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

Product highlights * Linux operation system * ARM CPU * Digital signal and processor * Continous hard work for 10000 hours * Energy saving design * High penetration * Good quality images Model Number TH5030 - - - - Physical Specifications | | Unit weight (kgs) | 250 | Unit size (mm) | 1660(L)*746(W)*1165(H) | after packed in wooden pallet - | | Gross weight (kgs) | 320 | Packing size | 180*88*138cm | | General Specifications | | Tunnel size(mm) | 503(L)*301(W) | Conveyor Speed(m/s) | 0.22 | Conveyor height(mm) | 668.5 | Conveyor Max Load(kgs) | 60 | X ray dose per each inspection | Typical 3.0 Gy, guarantee 3.5 Gy | X ray leakage | Typical 2.0 Gy/h, guarantee 2.5 Gy/h | Penetration | Typical 6mm, guarantee 4mm | Wire Resolution | Typical AWG38, guarantee AWG36 | Penetration Resolution | Typical AWG34, guarantee AWG32 | Spatial resolution: | Typical dia1.3mm, Vertical: dia1.3mm; Guarantee dia1.6mm, Vertical: dia1.6mm; | Power Consumption | 0.5KVA | Noise | < 60 dB | Film Safety | Guarantee ASA/ISO1600 Film | - - - - Advantanges Comprehensive leadership: First all-digital security inspection machine of China: from signal detection to image display, all signals are transmitted and processed digitally, with strong anti-interference ability and offer high definition scanned image Unique system: with embedded Linux operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

Safety and environmentally friendly: The equipment meets safety and environmental standards.

Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system.

Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10, 000 hours without failure.

Equipment Functions Imaging process functions: Color/BW, Local Enhancement, Super Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Previous/Next, Organics Exclusion, Inorganic Exclusion, Alarm sign box of suspicious object, Edge Enhancement.

System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-16 times continuous magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).

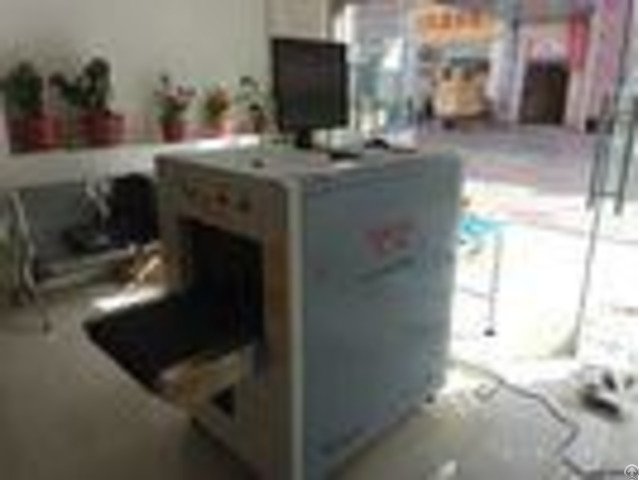

Applications: # Airports, # Transport terminals, # Buildings, # Factories (to find needle in clothing, shoes, bags), # Courthouses, # Embassies, # Military installations, # Prisons, # Hotels, # Schools, # Convention centers, # Security checkpoints, # Special events location Below are the installation photos for Safeway X-Ray Baggage Scanners in a Convention Center
