140kv Generator X Ray Security Screening System Oem Odm Available - China

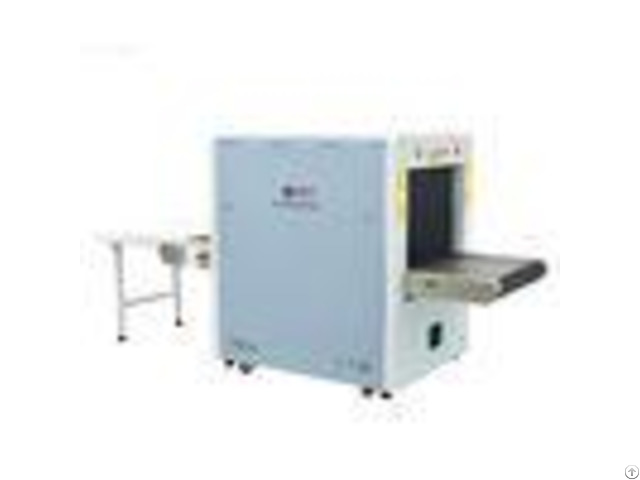

X-ray Baggage Scanner with High Resolution Single Energy Luggage X Ray Machine for Security Checking x ray baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination.

It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

- - - - General Specifications | | Tunnel size(mm) | 658(L)*495.5(W) | Conveyor Speed(m/s) | 0.2 | Conveyor height(mm) | 700 | Conveyor Max Load(kgs) | 200 | X ray dose per each inspection | Typical 2.0 Gy, guarantee 2.5 Gy | X ray leakage | Typical 1.0 Gy/h, guarantee 1.5 Gy/h | Penetration | Typical 30mm, guarantee 27mm | Wire Resolution | Typical AWG38, guarantee AWG36 | Penetration Resolution | Typical AWG30, guarantee AWG30 | Spatial resolution: | Typical dia1.0mm, Vertical: dia1.0mm; Guarantee dia1.3mm, Vertical: dia1.3mm; | Power Consumption | 0.5KVA | Noise | < 60 dB | Film Safety | Guarantee ASA/ISO1600 Film | - - - - Advantanges .

Comprehensive leadership: First all-digital security inspection machine of China: from signal detection to image display, all signals are transmitted and processed digitally, with strong anti- interference ability and offer high definition scanned image.

# Unique system: with embedded Linux operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

# Safety and environmentally friendly: The equipment meets safety and environmental standards.

# Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system.

Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10, 000 hours without failure.

- - - - X-ray Generator | | Anode Voltage | 140 KV | Anode power | 0.5mA | Generate angle | 80 degree upward | Generate direct | from bottom to top | Cooling / Duty Cycle | Oil Cooling /100% | Brand | made by ourself | - - - - Image System # Monitor: High Resolution Color, LCD Accord, 17 inch (19 inch optional) # Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.

# Image Grey Level: 4096 # Image Processing: 24bit for processing real time # Image storage: Storage 500000 pictures in real time # Zoom: 64 Times Enlarge, Whole screen continuous observation # Assist of detecting organic and inorganic items such as weapons, explosives and narcotics using different colour show Computer and other Monitor: High Resolution Color, LCD Accord, 17inch Hard Disk: SEAGATE 500G 3.5 CPU: Cortex A9 Storage: 1GB Main board: IMX6_mainboard-V030 , made by Safeway Our company Our core competencies is X ray Baggage Scanner Under Vehicle monitoring System Walk Through Metal Detectors Hand Held Metal Detector Explosives & Drug Detector Dangerous Liquid Scanner and Turnstiles with very competitive advange.

Company Contact:

• Posted By: Safeway Inspection System Limited

• Phone: 86-136-70213490

• Address: Room 308, Building E, QiFeng Digital Park, BaiNiKeng, PingHu Street, LongGang, Shenzhen, China, Shenzhen , Guangdong , China

• Email:

• Business Description: Safeway Inspection System Limited, established in 2008, brand owner of Safeway System, Secu Scan and Chinasafe Equipment, formerly named Shenzhen Security Electronics Equipment Co.

  Ltd., is the largest manufacturer of x-ray baggage scanners in China, with the widest product line of Security Equipment.
