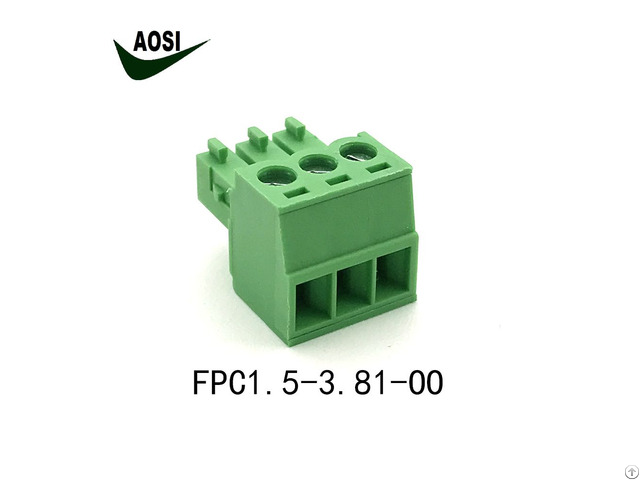

15edgk Plug In Terminal Block - China

Quick Details

Place of Origin:

Guangdong, China

Brand Name:

AOSI

Model Number:

FPC2.5-XX-381-00

Number of Contacts:

2-24

Conductor Size:

28-12AWG

Type:

SCREW

name:

Terminal Block

Brand:

AOSI

Housing material:

PA66 UL94V-0

Rated voltage:

300V

Rated current:

16A

Pitch:

5.08mm

Soldering temperature:

250℃/5S

Dielectric Voltage-Withstand:

1.3KV Dongguan AOSI Electronics Co., Ltd is the collection development, production, sales in one of the specialized terminals, terminal, terminal, connector, connectors manufacturers, and has a number of high-quality management team and technical elite, through nearly ten years of careful management, products through the UL, VDE, CB, CQC, ROHS and other certification, the factory has passed ISO9001 : 2008 quality system certification.

The main products are: CA series shrapnel type wiring terminal, CT series lifting type wiring terminal, CP series slide-in terminals, CS series screw free press buckle type connection terminal, CK series, CZ series fence type wiring terminal through type wiring terminal, a variety of single double pin and IC socket.

Standing specifications have 2.54, 3.50, 3.81, 3.96, 5, 5.08, 6.35, 7.50, 7.62, 8.255, 9.525, 10, 10.16, 11, 13.00mm.
