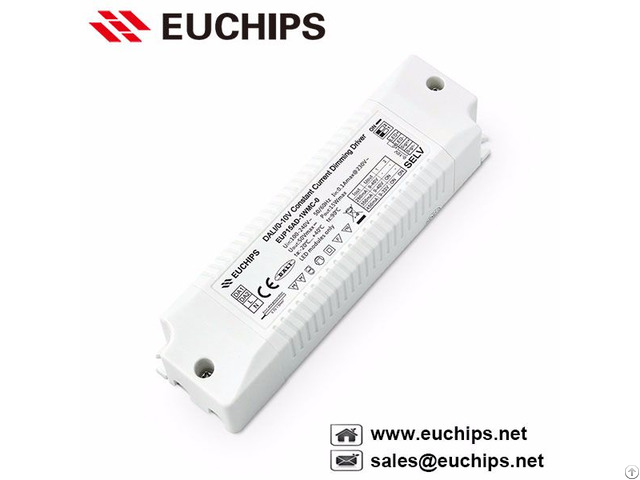

15w 280 350 450ma Dali And 0 10v Constant Current Led Driver Eup15ad 1wmc 0 - China

EUP15AD-1WMC-0 is a wide input voltage, constant current mode output LED driver.

The output current can be easily set via the DIP dial switch.

EUP15AD-1WMC-0 complies with DALI standard protocol IEC 62386, and provides multiple dimming function (DALI, 0-10V active signal, PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.

Feature

1 - Single channel output, output current level selectable by DIP S.W.

2 - Support a variety of dimming mode(DALI/0-10V active signal/adjustable resistance/PWM/Touch DIM)

3 - Wide range of input voltage 100VAC ~ 240VAC

4 - High efficiency up to 82%

5 - Built-in active PFC function

6 - Dimming effect smooth, no flicker

7 - Protections: Short circuit.

8 - Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameter

Model: EUP15AD-1WMC-0

Output Current: 280/350/450mA

Output Voltage: 9-40/9-40/9-33VDC

Power: 15W

Current Accuracy: ±5%

Maximum Output Voltage: 50VDC

Output LF Current Ripple(< 120 Hz): ＜3%

Channels: 1

Input Voltage: 100–240VAC

Frequency: 50/60Hz

Power Factor(Type): ≥0.9@230VAC, full load

Efficiency(Type): 82%@230VAC, full load

Input Current: 0.1Amax@230VAC

Inrush Current: 15A@230VAC

Protection: Short circuit, close output, recovers automatically after fault removed

Dimming: DALI/1-10V active signal/adjustable resistance/PWM/Touch DIM

Priority order: DALI>(1-10V active signal/adjustable resistance/PWM)> Touch DIM

Dimension: 150*43*29 mm(L*W*H)

G.

W: 130g

Working temp: -20℃ ~ 40℃

Relative humidity: 20~90% RH
