16mm Momentary Metal Push Button Switch - China

price: 2.58 Dollar US$

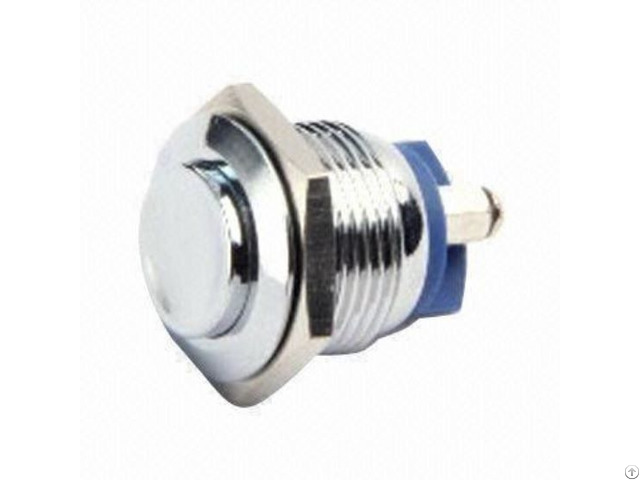

16mm Momentary Metal Push Button Switch

Products Photos Catalog 16mm Momentary Metal Photos Catalog

Key Specifications/Special Features:

Switch rating: 3A/250V DC

Contact configuration: 1NO, 1NC or 2NO, 2NC

Operation type: momentary or latching

Crust materials: stainless steel or nickel-plated brass

Front shape: flat or round

Terminal type: pin terminal (2 x 0.5mm)

Switching: C (single-break fast-motion changeover contact)

Maximum switch rating:

Ith: 3A

Ui: 250V AC

Contact resistance: d50Ω

Insulation resistance: e1, 000MΩ

Dielectric intensity: 2, 000V AC

Panel thickness: 1 to 6mm

Torque: 5 to 14Nm

Operating pressure: about 2.5 to 4N

Operating temperature: -20 to +55°C

Mechanical life: 1, 000, 000 cycles

Electrical life: 200, 000 cycles

Operating travel: about 1.5mm

Diameter: 16mm

Protection grade: IP65

Certificates: CE and TUV

Compliant with RoHS directive


Company Contact:


  • Phone: 13829130854

  • Address: Sparkle Center 1801, dongguan , Guangdong , China

  • Email: Email


Published date: September 26, 2017

  • Business Description: manufacture and export electrical switches, including push button switches, rocker switches, rotary switches, toggle switches, tact switches and metal push button switches
