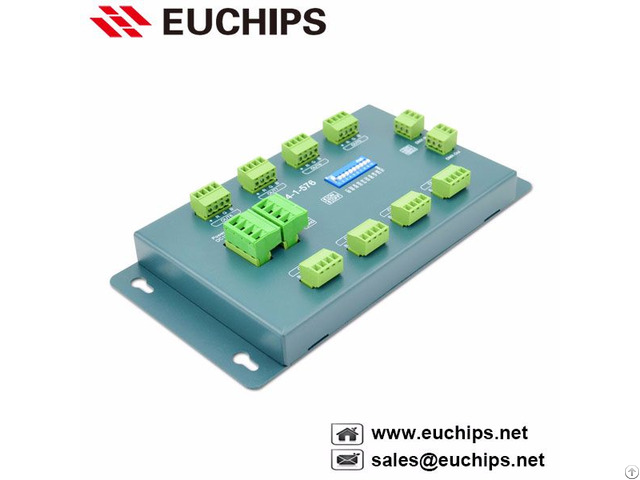

1a 24 Channel 12 24vdc 288 576w Dip Switch Constant Voltage Dmx Decoder Pxl24 1 576 - China

Constant voltage dmx decoder PXL24-1-576 adoptS the advanced micro-computer control technology and converted the DMX512/1990 digital signal widely used in international to the analog control signal.

1~24 channels output for option and each channel able to achieve 256 gradations of controling, and also it can be used as the connector of PC digital-light controller and analog light modulator.

It is mainly used for the controlling of buildings & lights applied LED.

Features

1 - Meets DMX512/1990

2 - With 256 gradations and full-color contronl

3 - With 24 channels output and Max.

1A/CH output

4 - Can achieve the asynchronous color changes effect under working with DMX controls system.

5 - With the light color selected mechanism, and be able to control the light with 1~3 colors

6 - Set the DMX address code freely

7 - With good noiseproof feature

8 - Custom-made

Technical Parameters

Decode CH: 24 Channels

Signal Input：DMX-512/1990 Standard digital signal

Signal Output: 0~24V, Max.

1A/CH.

Power Supply：DC12-24V

Power Dis.

：12V: <288W;24V&l t;576W

Power output：12V: <288W;24V <576W

Work Temp.

：0~70℃

Size：L195(mm)*W100(m m)*H18(mm)

Weight：460g
