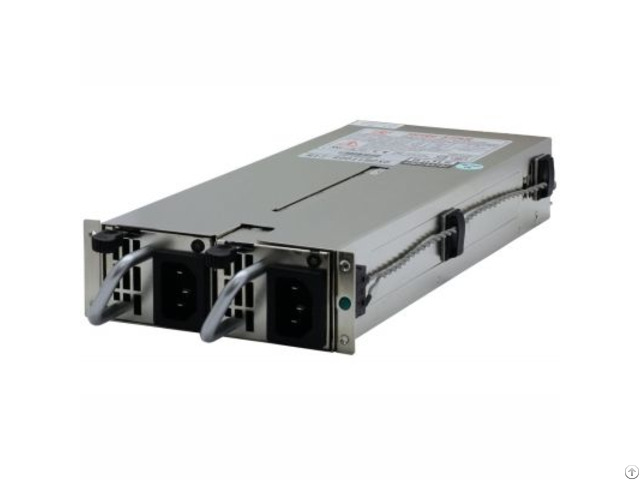

1u Redundant Power Supply R1j 250i1h2a0 - Taiwan
price: contact company for price
(AC to DC)
Safety Approval
Meet CE Rohs 2.0 2011/65/EU
Meet REACH
Operation Temp: 0°C~45°C High Efficiency
Low Noise Description:
1 - Watts: 250W+250W
2 - Input:
VOLTAGE: 100 - 240Vac Full Range
FREQUENCY: 50 - 60Hz.
INPUT CURRENT: 7A (RMS) for 115V AC, 3A (RMS) for 230VAC.
INRUSH CURRENT: 35A for 115VAC, 70A for 230VAC
3 - Dimensions:
L x W x H: 260 x 106 x 41.50 (mm) / 10.23 x 4.17 x 1.63 (inches)
4 - Others Certificates: REACH/RoHS 2.0 FEATURES:
1 - Hot-Swappable & Power Sharing capability.
2 - Full Range AC Input.
3 - ACTIVE PFC
4 - Efficiency: > 80 at full load.
5 - Hold-Up Time: 16ms at maximum load & normal input voltage.
6 - OVER VOLTAGE PROTECTION.
7 - SHORT CIRCUIT PROTECTION.
8 - OVER POWER PROTECTION.
9 - NO LOAD OPERATION.
10 - ENVIRONMENT TEMPERATURE
Operation Temperature: 0℃ to 45℃
Cooling: By forced air
Storage Temperature: -20℃ to 70℃
Humidity: 5 to 90﹪non-condensing.
11 - RELIABILITY
MTBF OF POWER SUPPLY ELECTRONIS
100, 000 hours at full load and 25℃ ambient temperature
LIFE EXPECTANCY OF FAN
40, 000 hours at 40℃
Company Contact:
- Posted By: Sure Star Computer Co., Ltd.
- Phone: 886-2-26822505
- Address: No. 2-1, Da an Rd., Shulin Dist., , New Taipei City, Taiwan , Taiwan
- Email:
- Website: https://www.surestar.com.tw
Published date: December 24, 2019
- Business Description: Established in 1989, TC Sure Star Computer Co.
has been designing and manufacturing quality industrial power supply units and other related power products, such as Single Power Supply, Redundant Power Supply, power Supply Accessories, etc.
